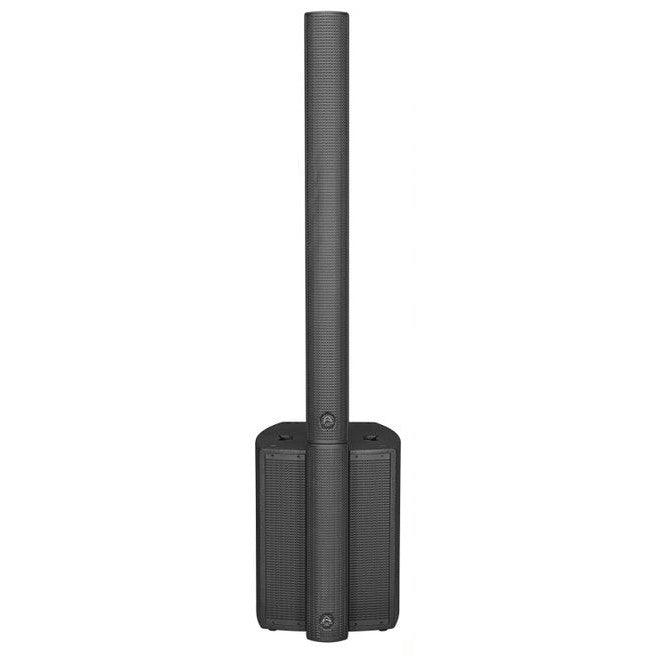

Wharfedale Pro ISOLINEAX912 Column Speaker Active 12" Subwoofer 1200W Continuous
Wharfedale Pro ISOLINEAX912 Column Speaker Active 12" Subwoofer 1200W Continuous
Regular price
Dhs.5,670.00 AED
Regular price
Dhs.0.00 AED
Sale price
Dhs.5,670.00 AED
Unit price
/
per
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- 12.0” subwoofer
- 9 x 3.0” wide-range drivers
- 2 x 1.0” HF Compression drivers
- 2 x mini EVO-Fold waveguides
- 1200 W Continuous
- 2400 W Peak
DESCRIPTION
Discrete and punchy – Portable and practical!
A self-contained live sound solution for live performance. The hardest choice to make is….. ‘which model’?
‘Practicality’ was a key goal for the design team. To make an active system with features that make setups and break-downs easy. The column uses direct coupling to make connection fast. The column itself is also rotatable by +15% / -15% to ensure the output really covers the audience.
SPECIFICATIONS
| System Type | Active |
| Frequency Response (+/-3 dB) | 40 Hz-20 KHz |
| Frequency Range (-10 dB) | 35 Hz-20 KHz |
| Maximum SPL @1m | 129 dB |
| Transducers | |
| Low Frequency Transducer | |
| Size ( mm / inches) | 305 mm / 12” |
| Coil Size ( mm / inches) | 51.3 mm / 2″ |
| Impedance | 4 Ω |
| Column Transducer | |
| Type | 9 x 3″ Wide-band Drivers |
| Coil Size ( mm / inches) | 32.5 mm / 1.3″ |
| Type | 2 x 1″ High Frequency drivers |
| Waveguide Type | EVO-Fold |
| Coil Size ( mm / inches) | 25.4 mm / 1″ |
| Diaphragm Material | PEI |
| Impedance | 4 Ω |
| Nominal Coverage (H x V) | 120° x 20° |
| Electronics | |
| Amplifiers [footnote] | |
| Low-Frequency Power Amplifier RMS/Peak Watts | 600/1200 W |
| High-Frequency Power Amplifier RMS/Peak Watts | 600/1200 W |
| Amplifier Class | Class D |
| Controls—D-EQ | ±9 dB |
| Amplifier Protection | Yes |
| Power On Protection | Yes |
| Thermal Protection | Yes |
| Low Line Voltage Shut Down | Yes |
| Driver Protection | Independent LF/HF Limiters |
| DC Protection | Yes |
| Short Protection | Yes |
| Clip Limiter | Yes |
| Limiter Indicator | LED |
| Power Indicator | LED |
| Subwoofer to Column | 2 x speakON |
| Connectors | |
| Inputs | |
| Input Sensitivity | Switchable balanced mic or line level input |
| Input A (Line / Mic Balanced) | Mic: -40 dBu Line: 0 dBu |
| Input B (Line / RCA / USB / Bluetooth) | 0 dB |
| Maximum Input Level | 10 dBu |
| Input Connector | 2 x XLR Jack Combi, RCA |
| Input Impedance | Balanced:20 KΩ Unbalanced:10 KΩ |
| Input A (Line / Mic Balanced) | 22 kΩ Balanced and 11 kΩ Unbalanced |
| Input B (Line / RCA / USB / Bluetooth) | 22 kΩ Balanced and 11 kΩ Unbalanced |
| Maximum Input Level | 10 dBu |
| Line Output Connector | Socket XLR |
| Impedance Balanced | Balanced: 50 Ω Unbalanced:100 Ω |
| Loop Gain | Line:36 dB |
| AC Power details | |
| Power Supply | High Efficiency Switching Dual Mode Power Supply |
| AC Power Options | AC100-120 V~/200-240 V~,50/60 Hz |
| Power On Indicator | Limiter Indicator: Red LED |
| Power Indicator: Green LED | |
| Bluetooth Pairing: Blue LED | |
| Enclosure(Subwoofer) | |
| Enclosure Material and finish | Subwoofer Plywood cabinet,resistant black paint,metal grille,rubber feet handles/ Column aluminum cabinet |
| Colour Options | Black |
| Grille Material & Finish | Steel |
| Dimensions and Weight | |
| Dimensions – Unpacked ( mm / inches): | |
| Column (HxWxD) | 1210x126x145 mm/47.64″ x4.96″ x5.71 “ |
| Base Column (HxWxD) | 590x126x145 mm/23.3″ x 4.96″ x5.71 “ |
| Subwoofer (HxWxD) | 559x454x576.1 mm /22″x17.87″x22.68″ |
| Dimensions – Packed ( mm / inches): | |
| Column + Base + speakON Cable (HxWxD) | 1280x385x210 mm/50.4″ x15.2″ x8.27″ |
| Subwoofer(HxWxD) | 634x530x650 mm /24.96″x20.87″x25.59″ |
| Weight | |
| Column Net Weight (kg / lbs) | 10.5 kg / 23.1 lbs |
| Base Net Weight (kg / lbs) | 4.3 kg / 9.46 lbs |
| Column + Base + speakON Cable Net /Gross Weight (kg / lbs) | 15.3 kg/ 17.5 kg / 33.7 lbs/ 38.5 lbs |
| Subwoofer Net /Gross/ Weight (kg / lbs) | 31.0 kg /34.3 kg/ 68.2 lbs/75.46 lbs |
