TOA
TOA Speaker Wallmount 30W 8ohm
TOA Speaker Wallmount 30W 8ohm
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
DESCRIPTION

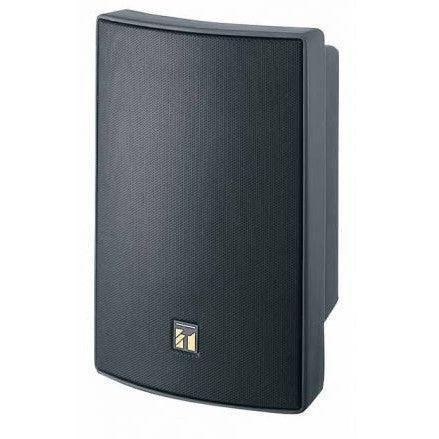

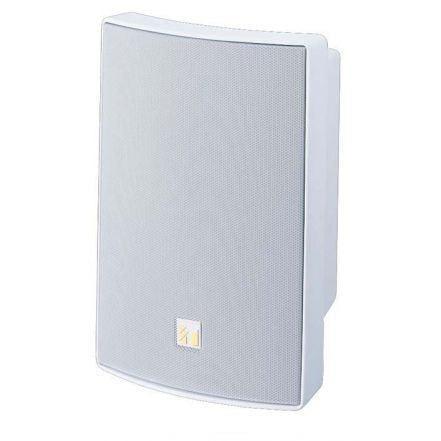

THE TOA BS-1030 MUSIC/PAGING SPEAKER has exceptional applications. Available in black and white, the versatile BS-1030 is designed for both indoor and outdoor use with a durable ABS resin enclosure and steel mesh grille. The two-way, bass-reflex design features a 4.72" (12 cm) cone woofer, 1" (2.5 cm) dome tweeter and built-in multi-tap transformer with screwdriver-adjustable power taps. A transformer bypass setting allows direct 8-ohm operation. Installation is fast and easy with the supplied mounting bracket or rear panel keyholes for horizontal or vertical surface-mounting.
SPECIFICATIONS
| Enclosure | 2-way bass-reflex type |
|---|---|
| Rated Input | 30 W |
| Rated Impedance | 8 Ω 100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) |
| Sound Pressure Level | 90 dB (1 W, 1 m) |
| Frequency Response | 80 Hz - 20 kHz |
| Speaker Component | 12 cm cone-type + dome-type |
| Speaker Cord | 2-core cabtyre cord with diameter of 6 mm |
| Operating Temperature | -10 ℃ to +50 ℃ |
| Water Protection | IPX4 (can be installed vertically or horizontally.*) |
| Finish | Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK, powder coating |
| Dimension | 196 (W) × 290 (H) × 150 (D) mm (unit only) |
| Weight | 2.5 kg (unit only) |
| Accessory | Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2 |
| Option | Applicable bracket: WCB-13B, SP-410 Applicable stand: ST-16A |
