Phonic PAA3X Handheld Audio Analyzer
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications

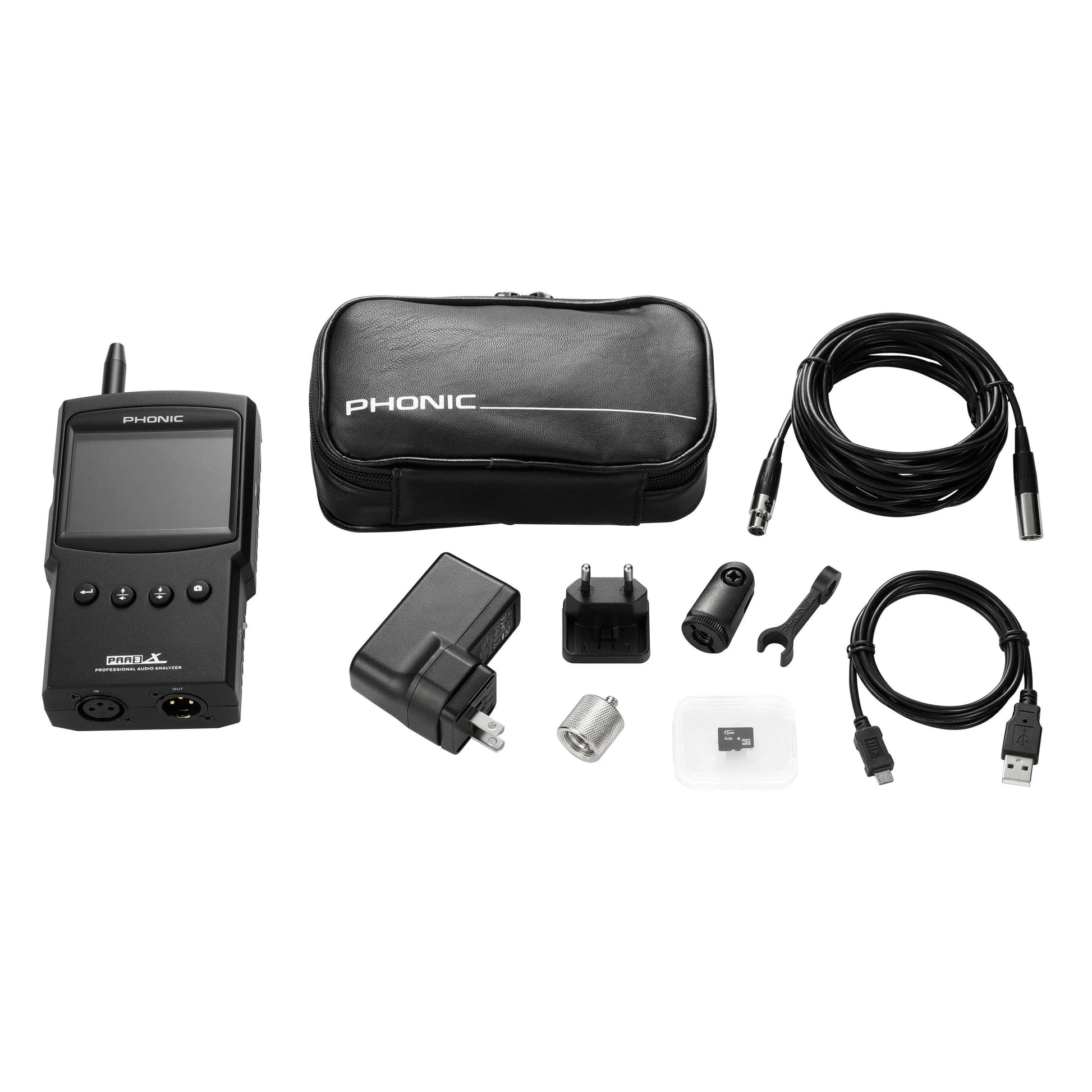

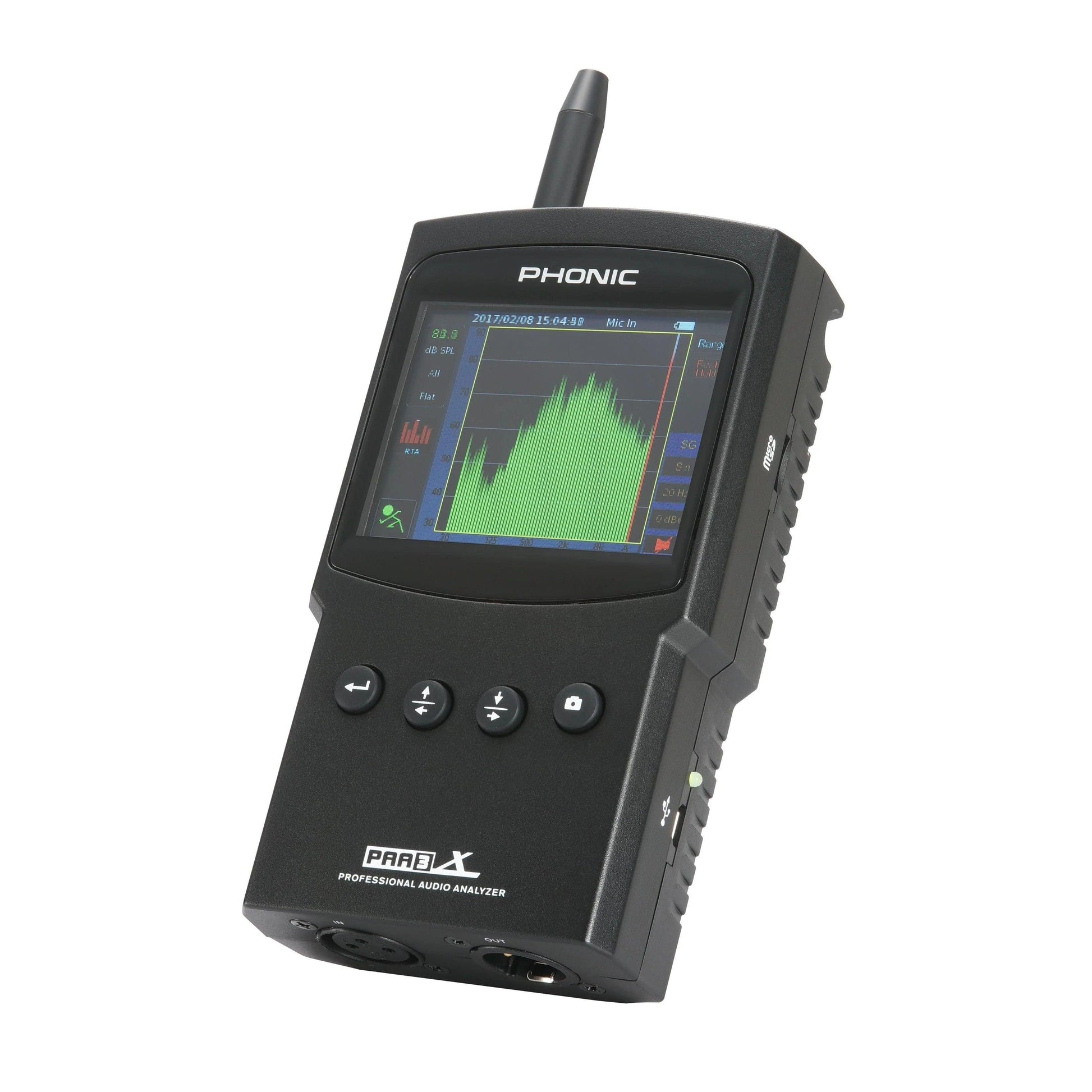

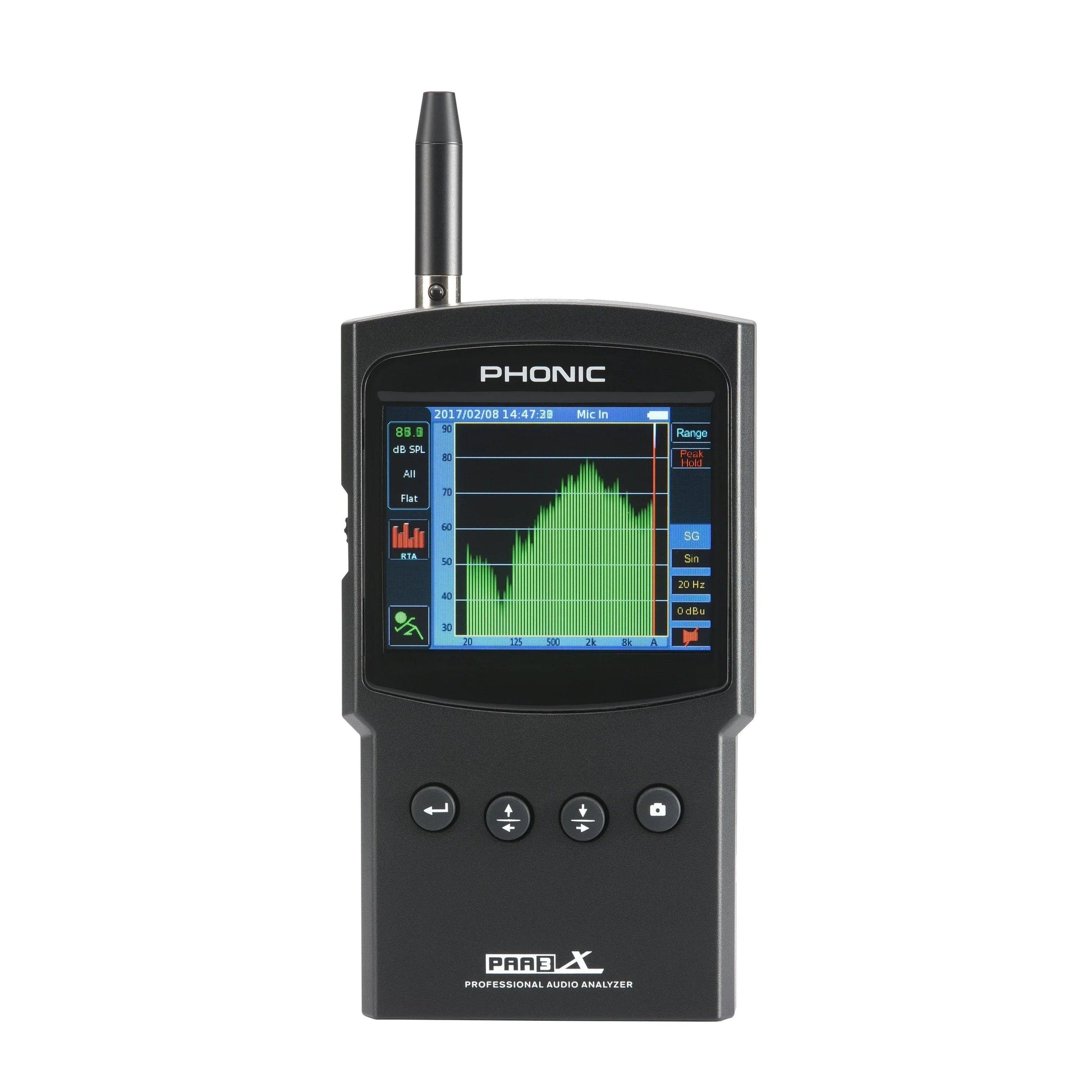

Sound engineers, rejoice! The Phonic PAA3X Handheld Audio Analyzer is a comprehensive toolkit for all your audio analysis needs. This device boasts real-time spectrum analysis (both 61 and 31-band options), reverb time measurement, sound pressure level metering, line level metering, an internal signal generator, EQ setting assistance, microphone calibration, and even speaker phase checking. It features a large, adjustable-brightness color LCD screen for clear viewing, and lets you capture screen images to an SD card. The detachable precision microphone with a 5-meter extension cable offers flexible positioning, and the built-in rechargeable battery keeps you powered up during on-site operations.
FEATURES:
😎 61-band and 31-band real-time spectrum analyzer: Provides detailed audio analysis for sound engineers.
📊 Detachable calibrated measurement microphone: Includes a 5m mic cable for remote placement of measurement mic.
🔊 SPL meter and level meter: Measures sound pressure levels from 30 dB to 130 dB.
💡 Line signal measurement display: Displays in dBu, dBV, or Volts (AC).
🔄 Polarity function: Checks the phase of any loudspeaker.
📸 Snapshot button: Instant screen captures saved to SD card.
SPECIFICATIONS:Microphone Detachable miniature condenser microphone Line Balanced XLR jacks for line input and output Display 320 x 240 RGB LCD SPL, dBu, dBV, Voltage Bar graph and digital display SPL (Microphone Input) 30 to 130 dB SPL dBu (Line Input) -50 to +40 dBu Maximum Level Display RESET
