Midas M32R Live Bundle

M32R Live

Whether you come from an analogue mixing background, or are accustomed to using other digital consoles, your first experience with M32R LIVE has been engineered to be intuitive, fluid and straightforward.

The brilliance of the M32R LIVE is its simplicity and workflow. Tactile controls allow smooth adjustments to critical elements as the mix progresses while the TFT screen keeps you informed every step of the way. This integration of tactile controls, motorised faders and the array of LCD and TFT displays makes the M32R LIVE experience the premiere solution for Live Sound, Broadcast, Studio Recording and Post Production applications.

M32R LIVE changes the game by completely rethinking what is possible in a digital mixer. An intuitive workflow coupled with a fully interactive user interface ensures immediate familiarity and instills confidence. Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price – changing the game entirely.

• Live performance and studio recording digital console with up to 40 simultaneous input channels

• 16 award-winning Midas PRO microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• 32 bi-directional channels of live recording/playback on dual SD/SDHC (cards not included)
• Up to 3 hours of 32 channel PCM recording in one session - stored as uncompressed WAV files

• High-performance aluminium and high-impact steel structure
• Rack mount brackets included for ultimate flexibility
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines

• 17 Midas PRO motor faders
• Daylight viewable 5" full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control* and HUI* protocols
• Optional wireless remote control with Midas Apps for iPhone* and iPad*

• Auto-ranging universal switch-mode power supply

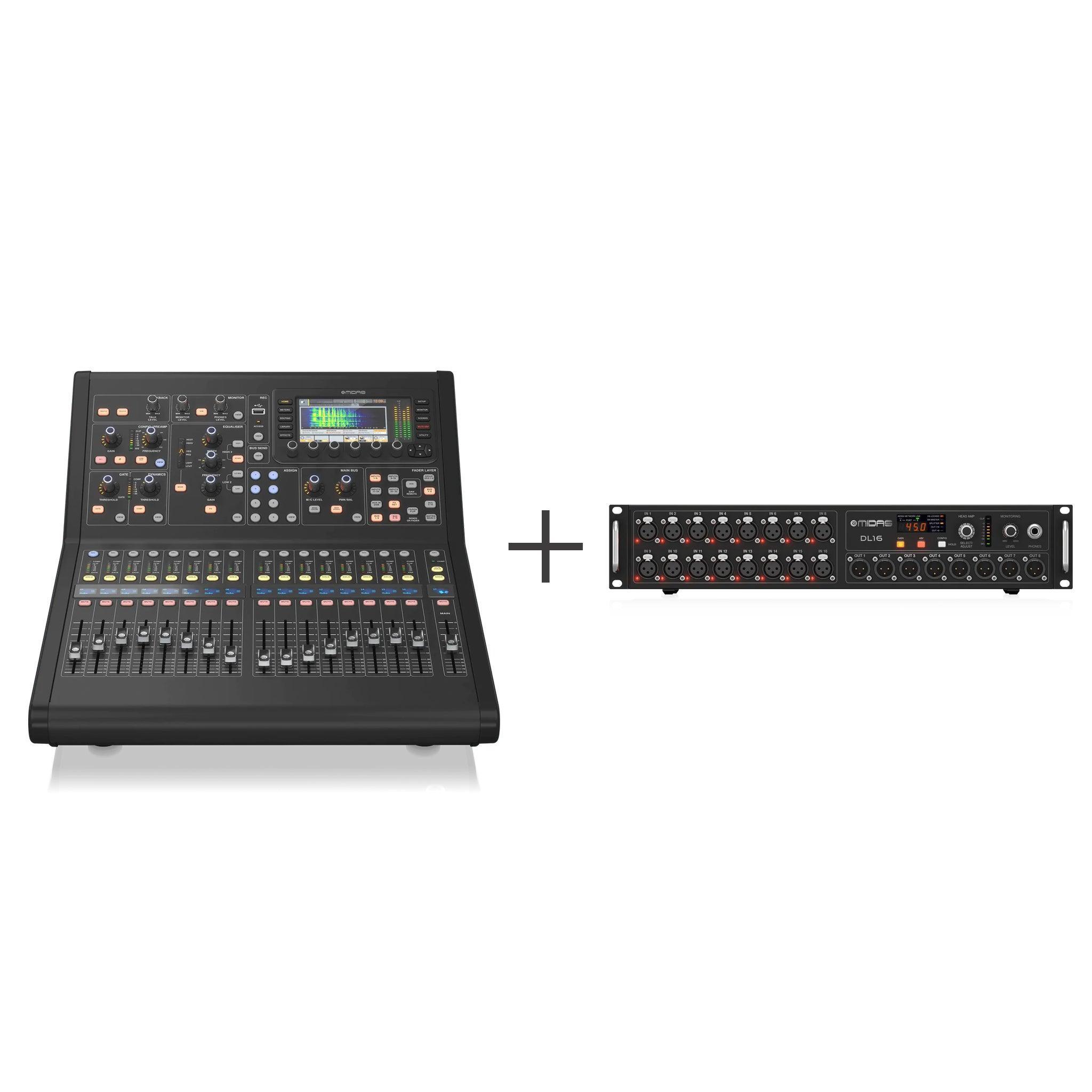

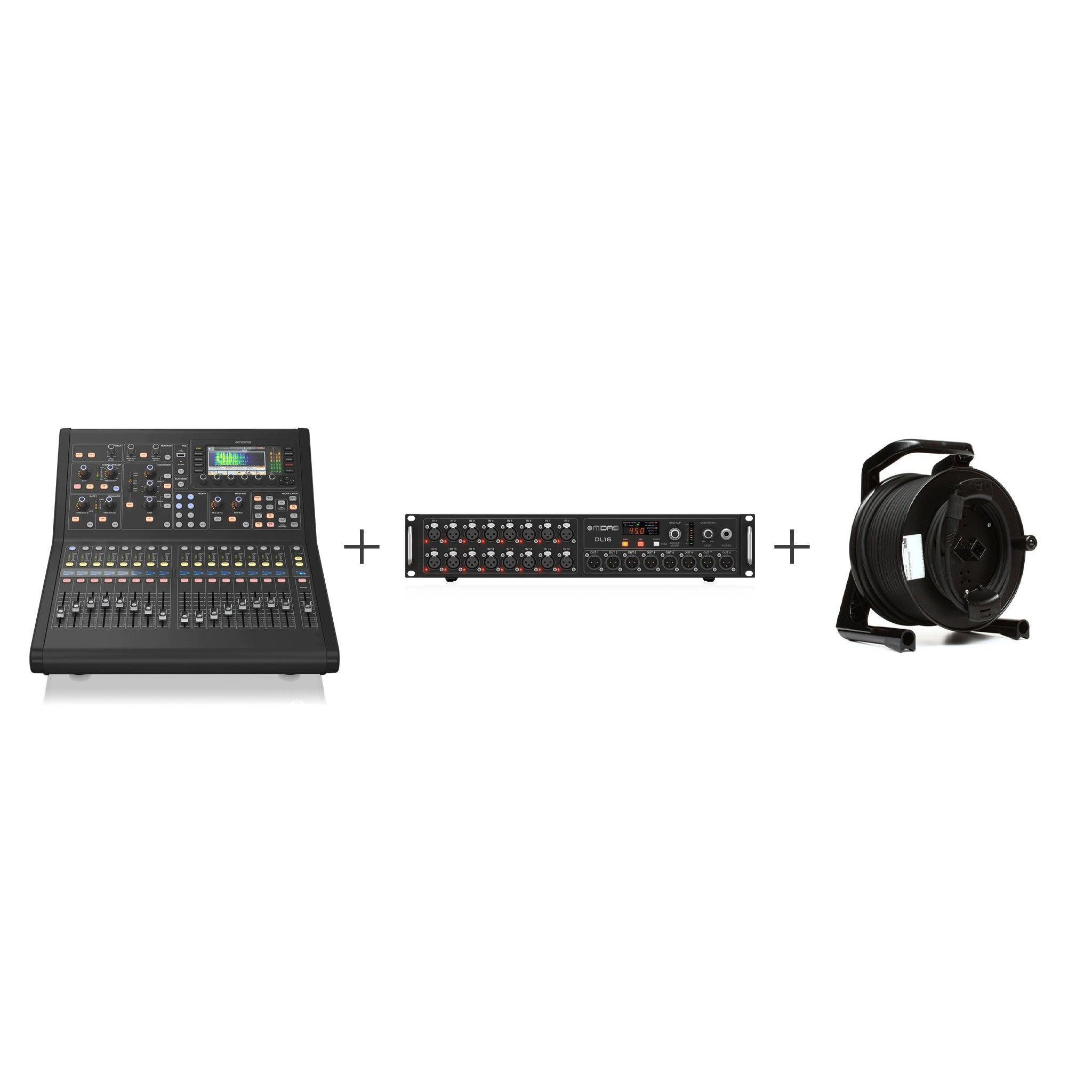

DL16

Digital mixing has revolutionized virtually everything in the live entertainment production work flow, and now that same cutting-edge technology brings live production signal distribution into the modern age. The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analogue XLR returns at the stage end; an integrated ULTRANET output for connecting to Behringer P16-M personal monitor mixers; plus connectivity for your ADAT-compatible outboard equipment.

If your application calls for more inputs, or just want to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp mic’ing. The best part – all it takes is a single CAT5 cable per stage box.

• 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

• 8 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes-no merger or router required
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors

• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• All settings programmable from front panel controls or console
• Status indicator LEDs on front panel
• Headphones output assignable to any of the inputs or outputs for on-stage monitoring
• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices

• Features Neutrik etherCON* AES50 and ULTRANET network ports
• Rugged 2U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply

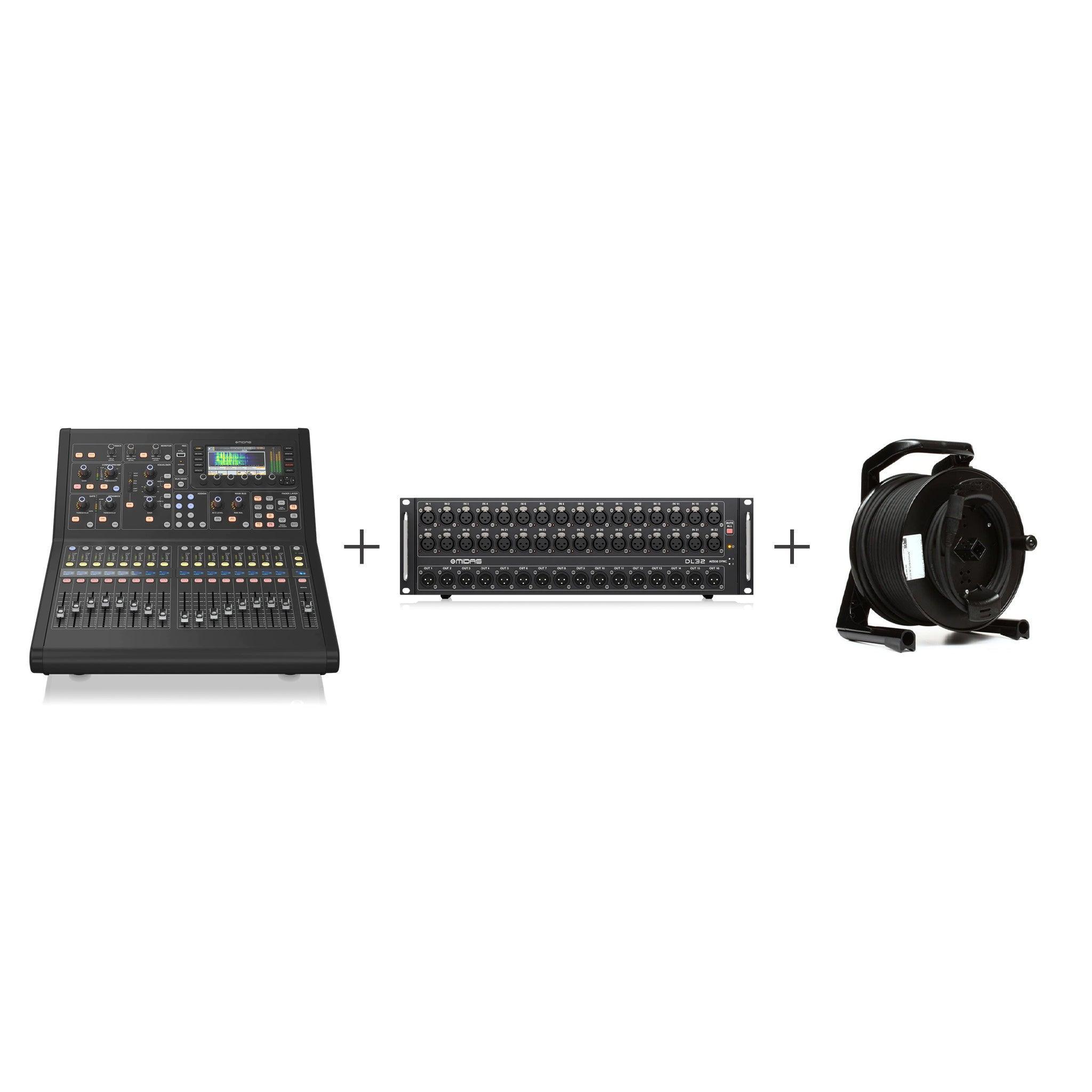

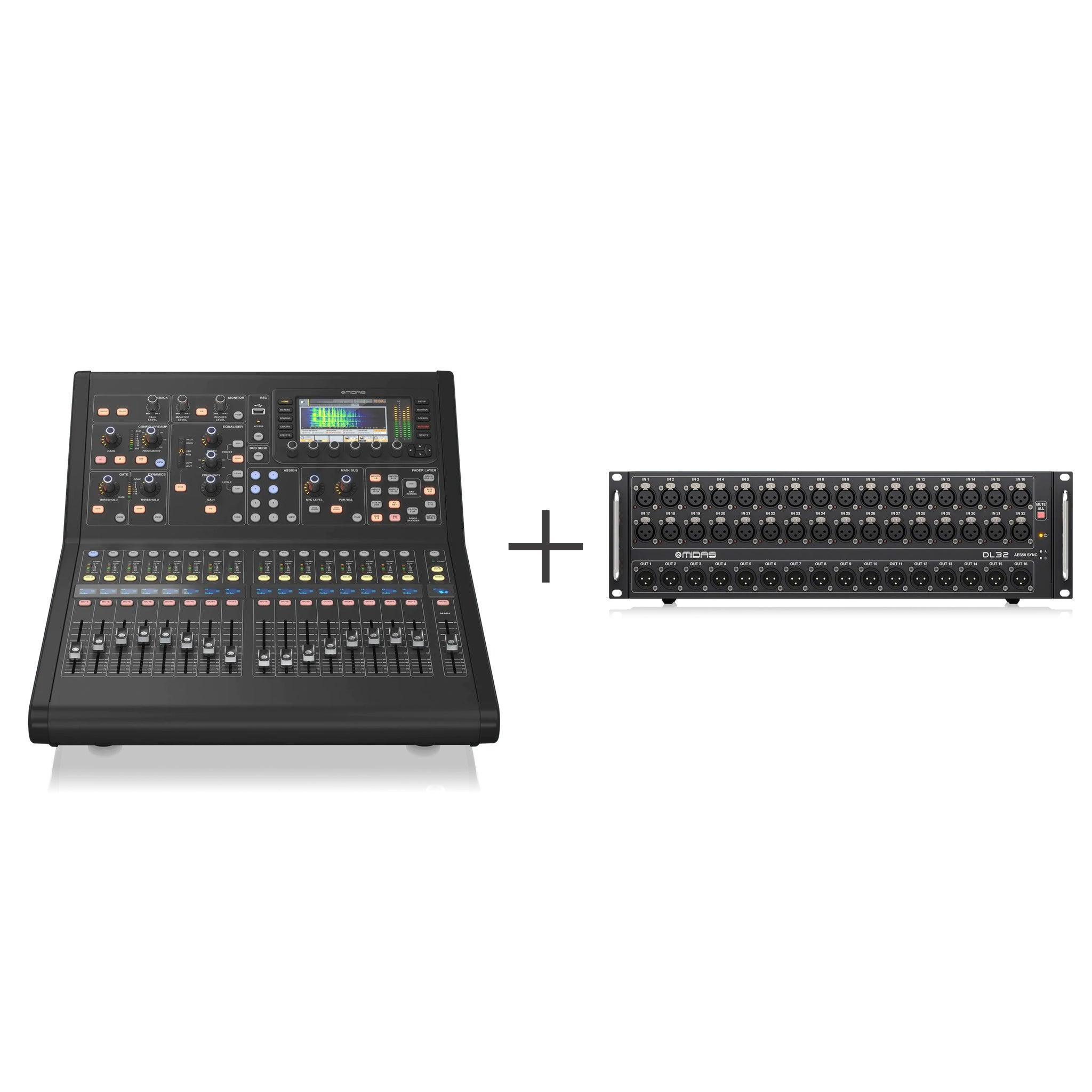

DL32

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

• 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
• 16 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes no merger or router required
• Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
• Features Neutrik etherCON* AES50 and ULTRANET network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply

NCAT5E50M

 Built from highly-flexible Neutrik etherFLEX and utilizing ultra-rugged etherCON connectors, NCAT5E-50M cable lends itself well to medium and long runs of AES50, Dante, EtherSound, CobraNet, AVB audio networking, or general-purpose Ethernet. Dual-shielded and dual-jacketed, NCAT5E-50M cable protects you against EMI and ESD interference as well as damage and breakage.

• Ultra-rugged and highly-flexible Neutrik etherFLEX Cat 5e cable
• Tested for both AES50 and EtherSound audio networking
• Dual-shielded for protection against EMI and ESD interference
• Dual-jacketed with PUR and FRNC layers for enhanced cable resilience
• Shielded Hirose RJ45 protected by Neutrik etherCON connectors on both ends
