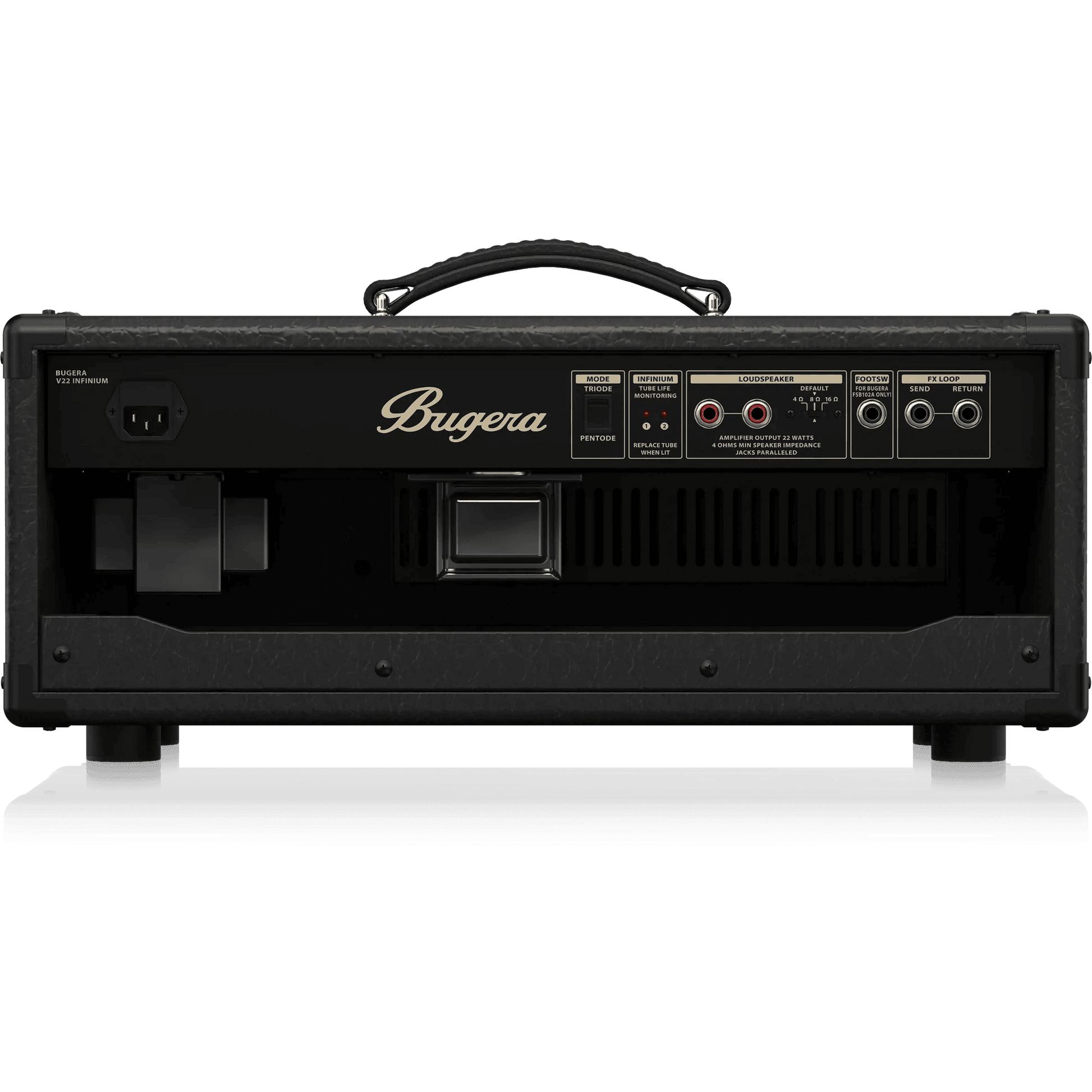

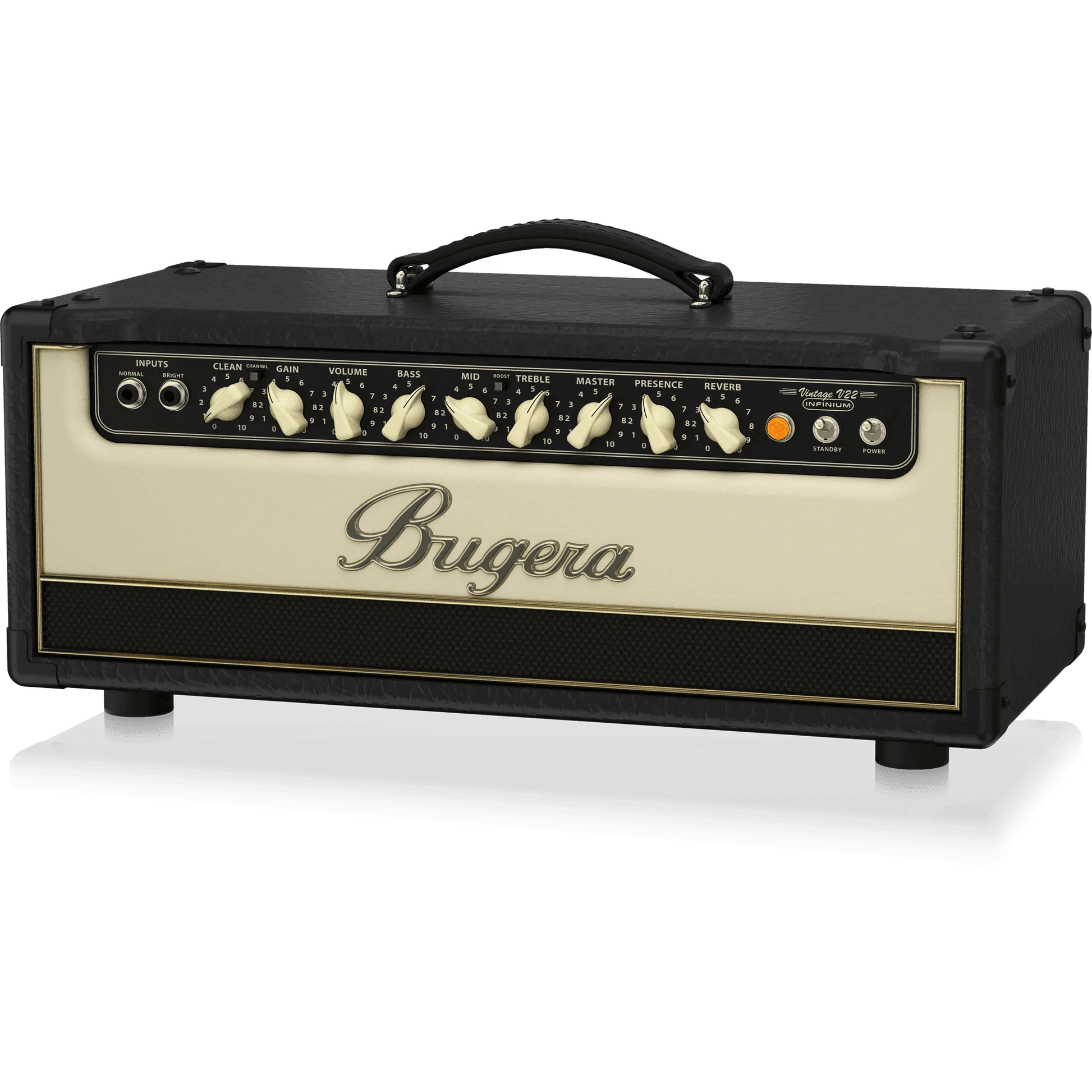

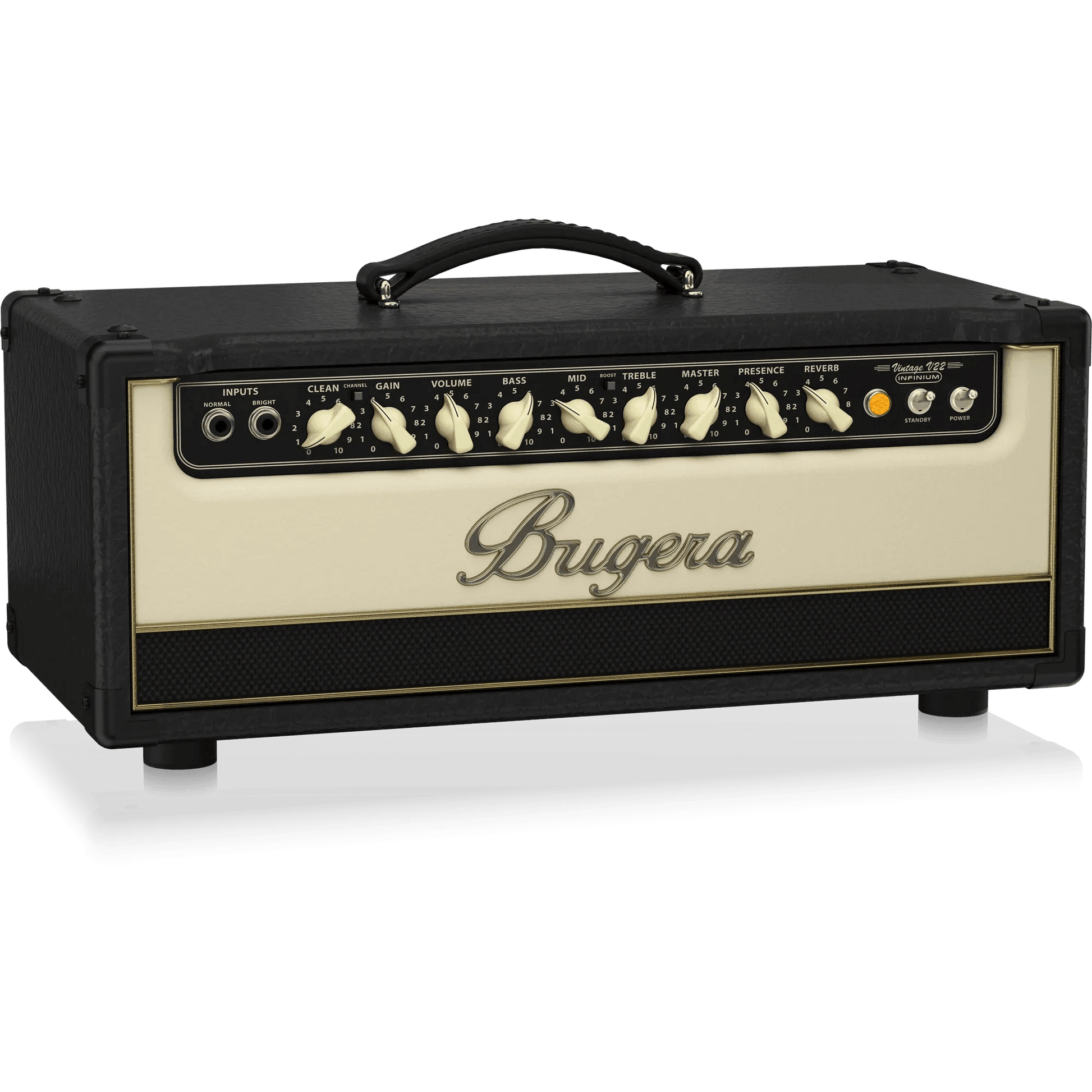

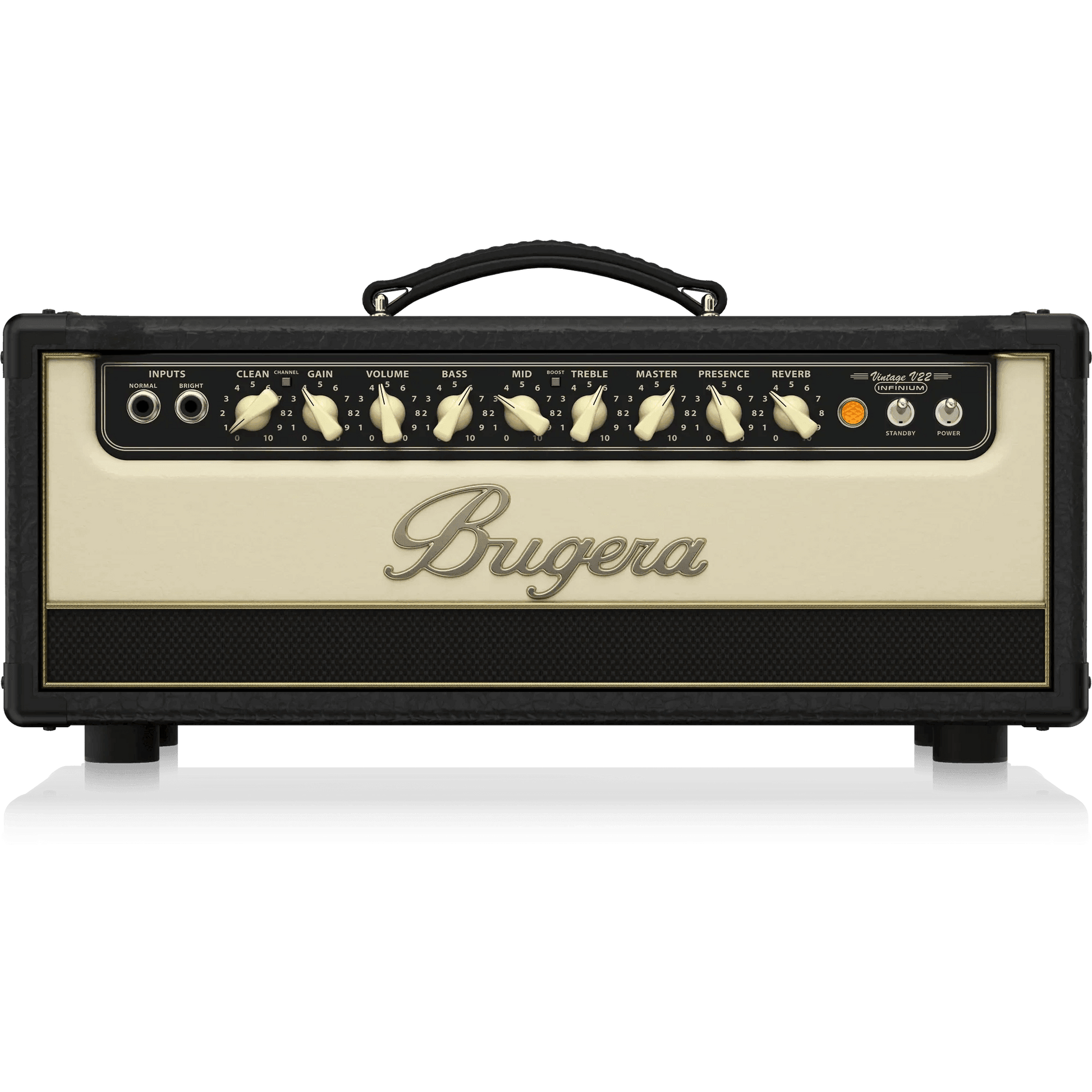

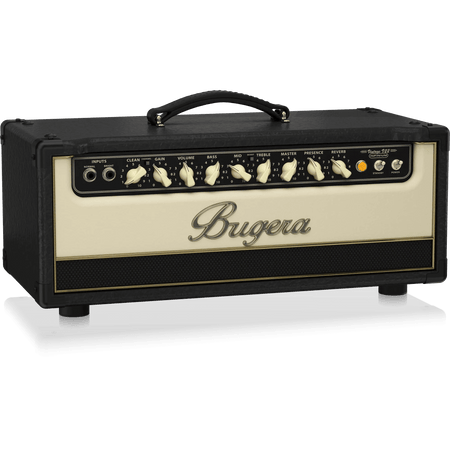

Bugera V22HD INFINIUM 22W Vintage 2-Channel Tube Amplifier Head

SKU: V22HD INFINIUM

Log in to view price Trade pricing — AED / USD

Out of stock
  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information



    KEY FEATURES

    • Hand-built 22-Watt guitar head driven by 2 x EL84 tubes

    • Revolutionary INFINIUM Tube Life Multiplier technology:- Extends the life of your amplifier's expensive power tubes up to 20 times- Provides incredible reliability and consistent tone over the complete lifespan of your tubes- No need for expensive matched tube sets- Allows you to mix and match any combination of compatible tubes types and brands- Monitors performance of each power tube continuously and displays defective tubes to allow for easy and individual replacement

    • Way cool vintage look and feel

    • Authentic 2-channel preamp design from the '60s featuring 3 x 12AX7 tubes-everything from purring blues to mind-blowing crunch

    • Integrated high-definition reverb with dedicated Reverb control

    • Vintage Equalizer section with dedicated Bass, Mid, Treble and Presence controls

    • Normal and Bright inputs for ultimate sound character to perfectly match your guitar

    • Multi-gain stage Lead channel with Gain, Volume and Master controls

    • Amazing Mode switch to select between Triode or Pentode operation

    • Heavy-duty footswitch for Channel and Reverb function included

    • Impedance switch (4, 8 and 16 Ohms) to match virtually any speaker cabinet

    • 3-Year Warranty Program*

    • Designed and engineered in Germany

    DESCRIPTION

    The impressive and hand-built 22-Watt V22HD INFINIUM guitar head exudes vintage tone and style, and possesses modern features that will launch your sound into the sonic stratosphere. Loaded with 3 x 12AX7preamp and 2 x EL84 power tubes, this incredible boutique-style powerhouse gives you the flexibility of two independent channels and selectable reverb, both switchable via the included heavy duty footswitch. Connect one of our 112TS cabinets (sold separately), and the V22HD INFINIUM becomes an extraordinarily versatile tone-machine that’s perfect for the studio, stage, practice room and concert hall!


    SPECIFICATIONS

    SPECIFICATIONS





    V55, V55HD



    V22, V22HD



    Preamp Section





    Tubes





    Type



    12AX7



    Normal Input





    Impedance



    470 kΩ



    Bright Input





    Impedance



    147 kΩ





    Effects Send







    Impedance



    1 kΩ



    1.2 kΩ



    Effects Return







    Impedance



    41 kΩ



    53 kΩ



    Maximum input sensitivity



    3 dBV



    7 dBV



    Tubes







    Type



    2x 6L6



    2x EL84/7189/6BQ5



    Output Power







    V22(HD) / V55(HD)



    55 W



    22 W



    Loudspeaker Connectors







    Type

    Load Impedance



    1⁄4" unbalanced mono jacks

    4, 8, 16 Ohm switchable



    Internal Speaker (V22, V55 only)







    Type



    12" Turbosound, TS-12G320A8



    Impedance



    8 Ω



    Power



    80 W



    Power consumption



    165 W



    72 W



    Fuse



    100-120 V T 2A H 250 V

    220-230 V T 1A H 250 V



    100-120 V T 1A H 250 V

    220-230 V T 630 mA H 250 V



    Mains connection



    Standard IEC receptacle



    V22





    Dimensions (H x W x D)



    453 x 572 x 270 mm (17.8 x 22.5 x 10.6")



    Weight



    19.4 kg (42.7 lbs)



    V55





    Dimensions (H x W x D)



    545 x 597 x 270 mm (21.5 x 23.5 x 10.6")



    Weight



    23 kg (50.7 lbs)



    V22HD





    Dimensions (H x W x D)



    238 x 572 x 270 mm (9.3 x 22.5 x 10.6")



    Weight



    12.7 kg (28 lbs)



    V55HD





    Dimensions (H x W x D)



    238 x 597 x 270 mm (9.3 x 23.5 x 10.6")



    Weight



    14.8 kg (32.6 lbs)
