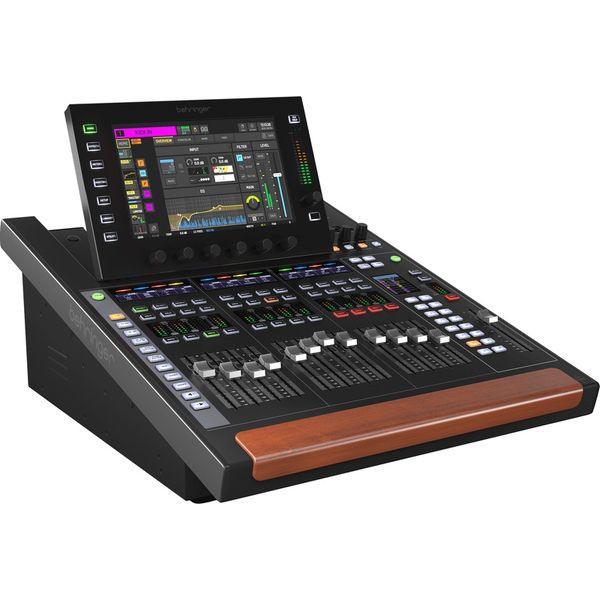

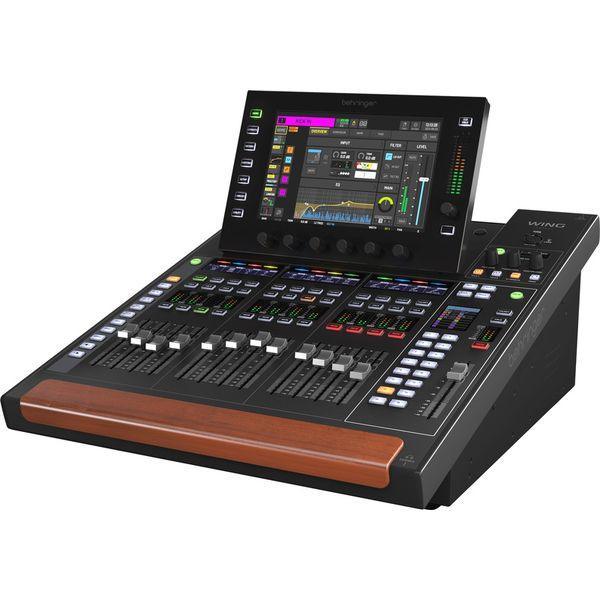

Behringer WINGCOMPACT Mixer Audio 48 CH 24 Mic Preamps & 8 Outputs
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- Unique “Sends on Fader”-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 2 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- 19" rack-mountable in 3 positions
DESCRIPTION
Insane I/O
Literally Hundreds of Ins and Outs
382 inputs and 368 outputs on WING COMPACT give you the freedom to adapt to any scenario:
Enjoy World-Class Effects
WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor*. No external gear is required.
WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.
Configure WING to Suit You
Record Up to 64 ChannelsThe WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.
Swap Out External Cards with EaseYou can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante networking connectivity. We are also planning other expansion cards for MADI and Waves Soundgrid, for example.
Plus Another 64x64 Channels via Internal AoIP ModulesThe internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission. Our retailers can also help you upgrade your existing WING or order a new WING console with your preferred card pre-installed. We currently have AoIP-Dante and AoIP-WSG (Waves Soundgrid) modules available.
SPECIFICATIONS
Frequency Response 10 Hz - 20 kHz @ 48 kHz sample rate, 0 to -1 dB Dynamic Range (Analog In to Analog Out) 111 dB (XLR) / 108 dB (Aux) A/D Dynamic Range (Preamplifier & Converter) 112 dB (XLR) / 110 dB (Aux) D/A Dynamic Range (Converter & Output) 118 dB (XLR) / 112 dB (Aux) Crosstalk Rejection @ 1 kHz 100 dB (Adjacent Channels) Output Level (XLR, Nominal / Maximum) +4 dBu / +21 dBu Output Impedance (XLR, Unbalanced / Balanced) 75 Ω / 75 Ω Input Impedance (TRS, Unbalanced / Balanced) 20 kΩ / 40 kΩ Non-Clip Max Input Level (TRS) +16 dBu Aux Output Level (TRS, Nominal / Maximum) +4 dBu / +16 dBu Aux Output Impedance (TRS, Unbalanced / Balanced) 150 Ω / 300 Ω Phones Output Impedance / Max Output Level 1W Max @ 30 Ohm Residual Noise Level (XLR Out 1-16, Unity Gain) -97 dBu Residual Noise Level (Aux & Monitor TRS Out) -95 dBu Main Screen 10.1" TFT LCD, 1280 x 800 px, capacitive touch Main Screen Swivel Continuous, 15°- 60° 4-Channel Group LCD Screen 320 x 48 monochrome, RGB color per channel Motor Faders 100 mm, 12 + 1 Touch-Sensitive Rotary Controls 3 + 7 + 11 + 4 + 4 Custom Controls 8 Assignable Rotary Controls 4 Assignable Backlit Buttons 16 (8 + 8) Variable Rotary Controls / Buttons 4 / 4 Power Supply Switch-mode, Auto-ranging 100-240 VAC (50/60 Hz) Power Consumption 130 W Operating Temperature 5°C – 40°C (41°F – 104°F) Dimensions (HxWxD) 57.43 x 45.337 x 22.5 cm Weight 15.92 kg
