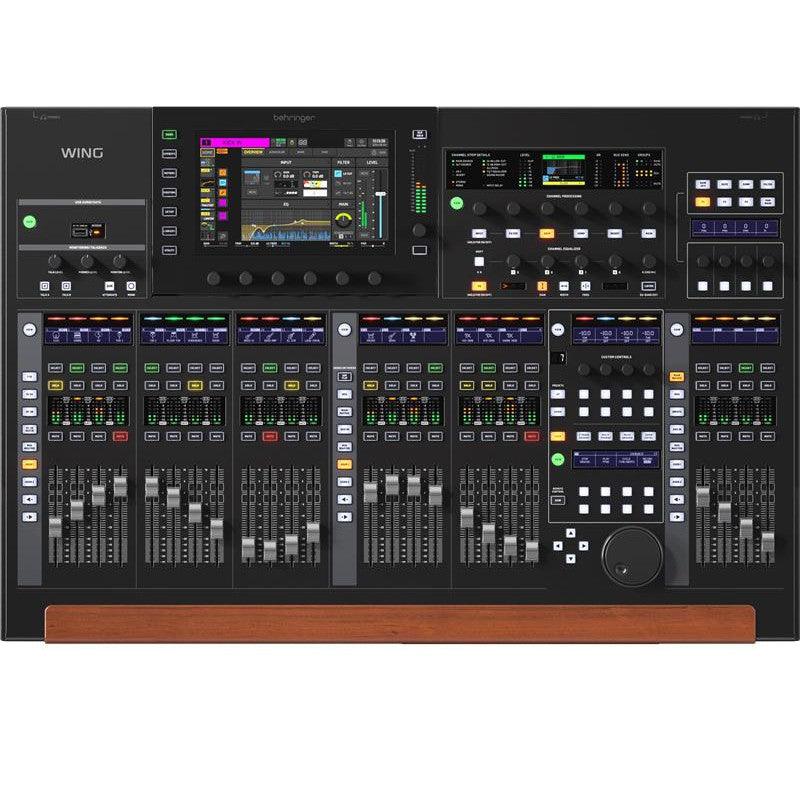

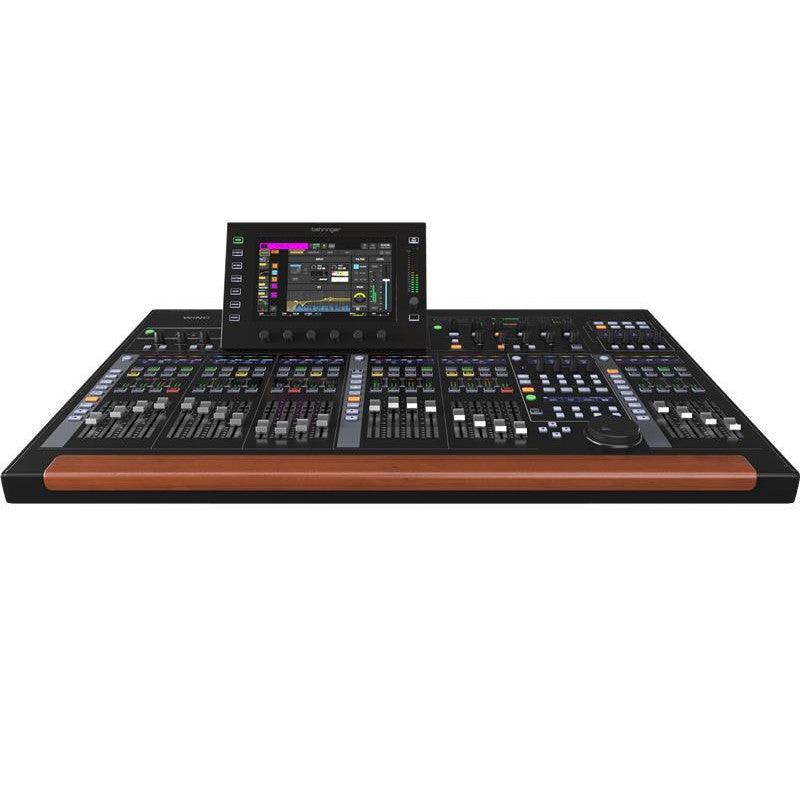

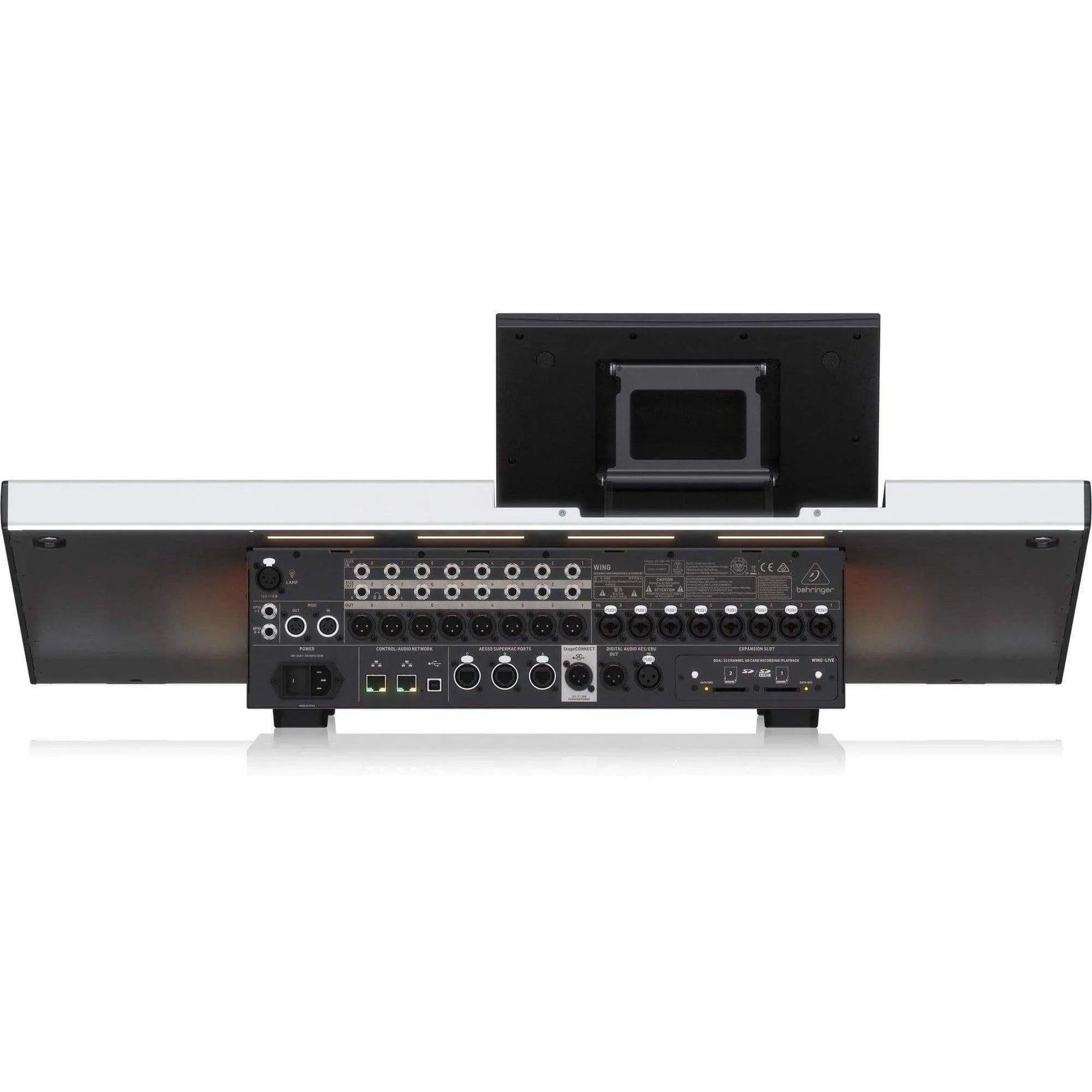

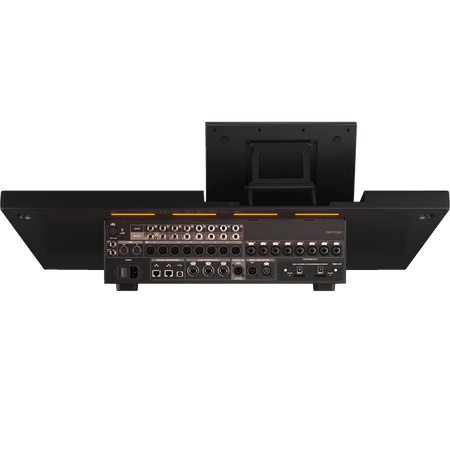

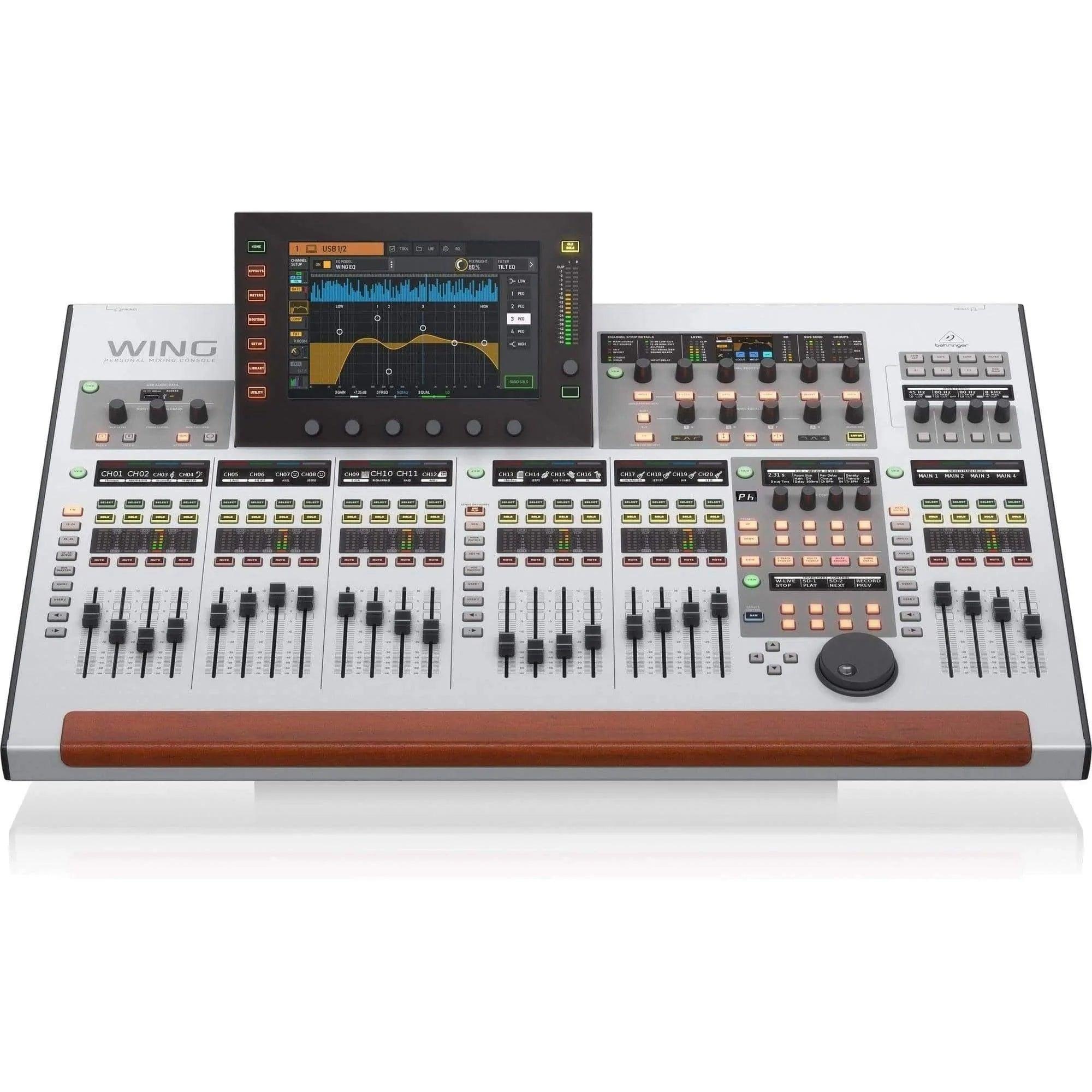

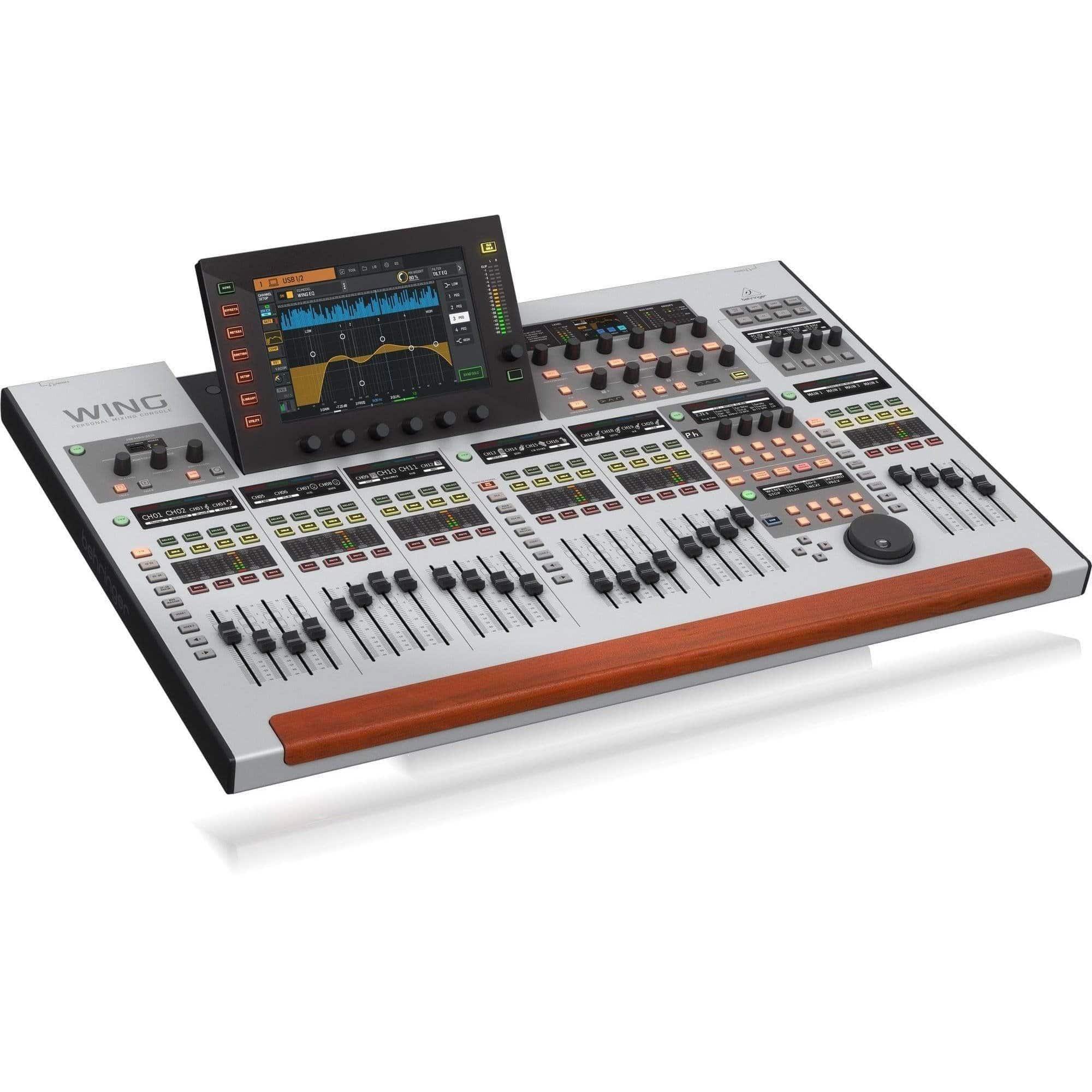

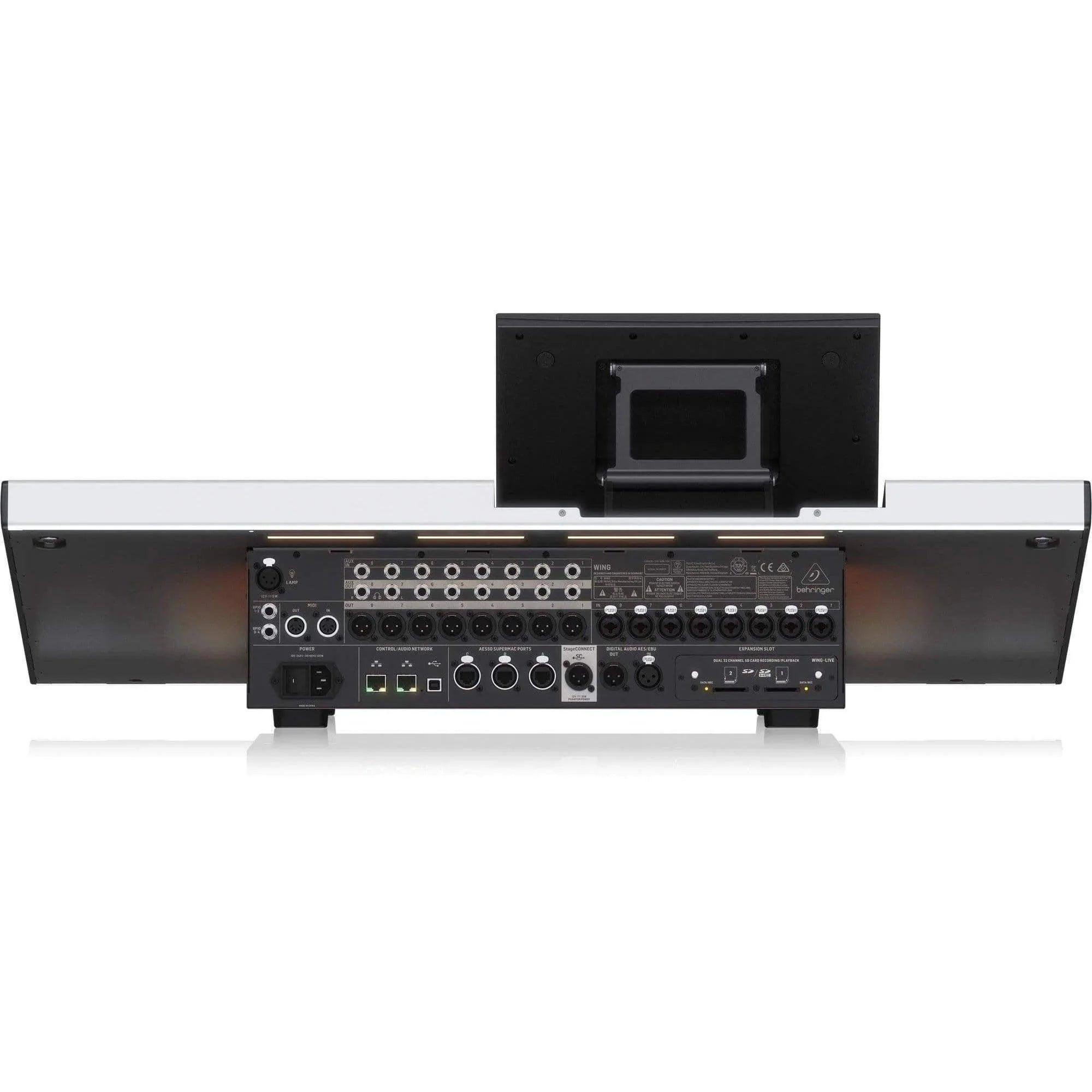

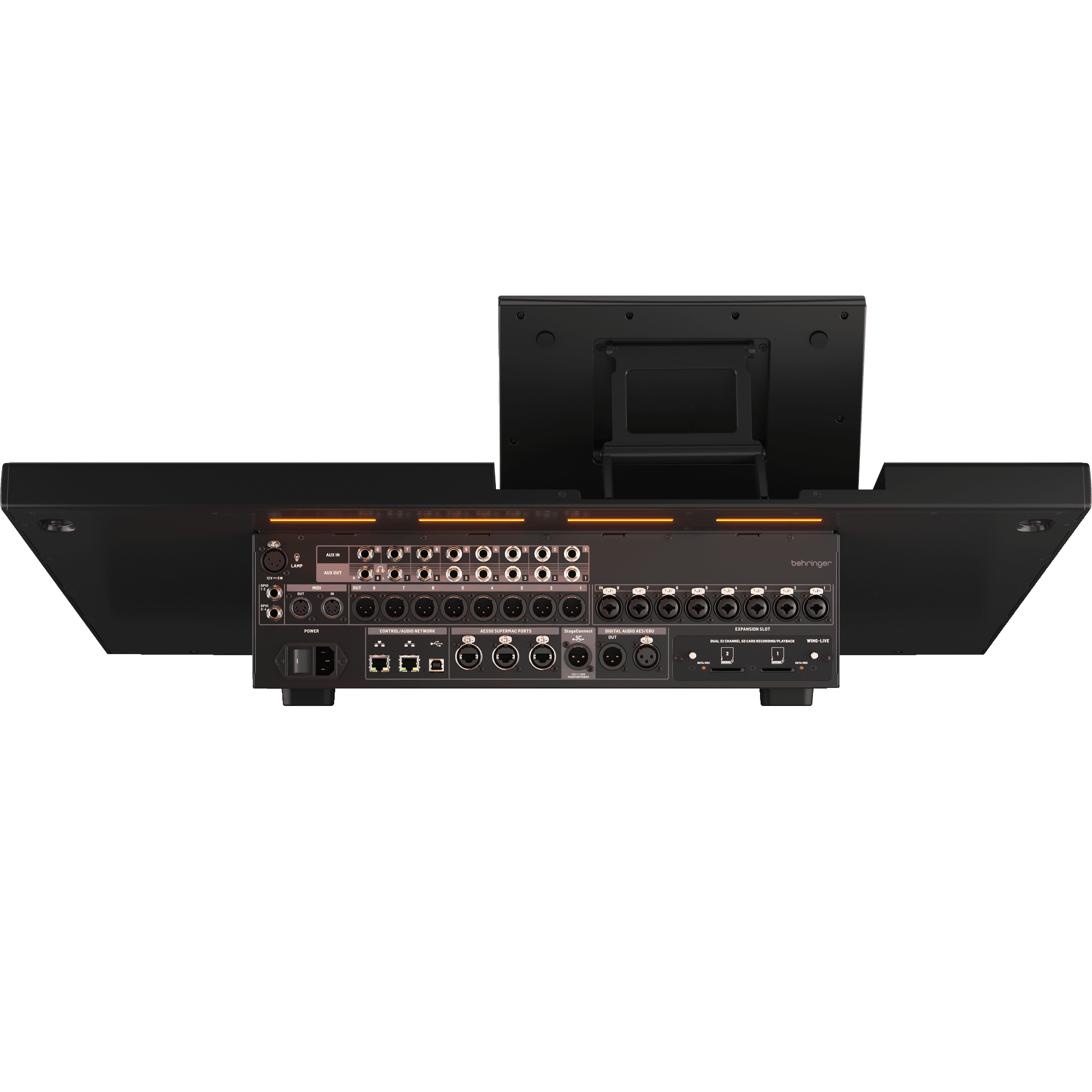

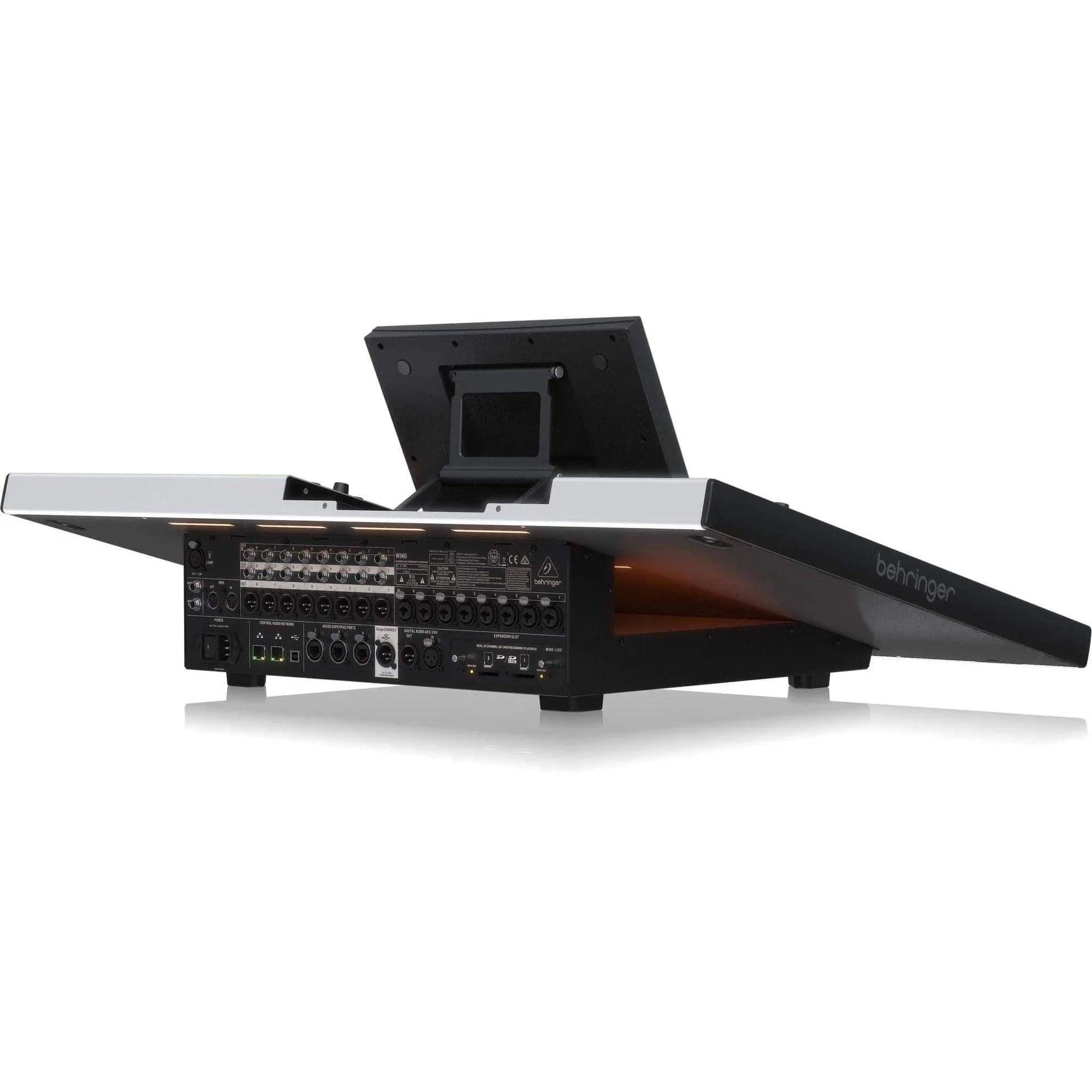

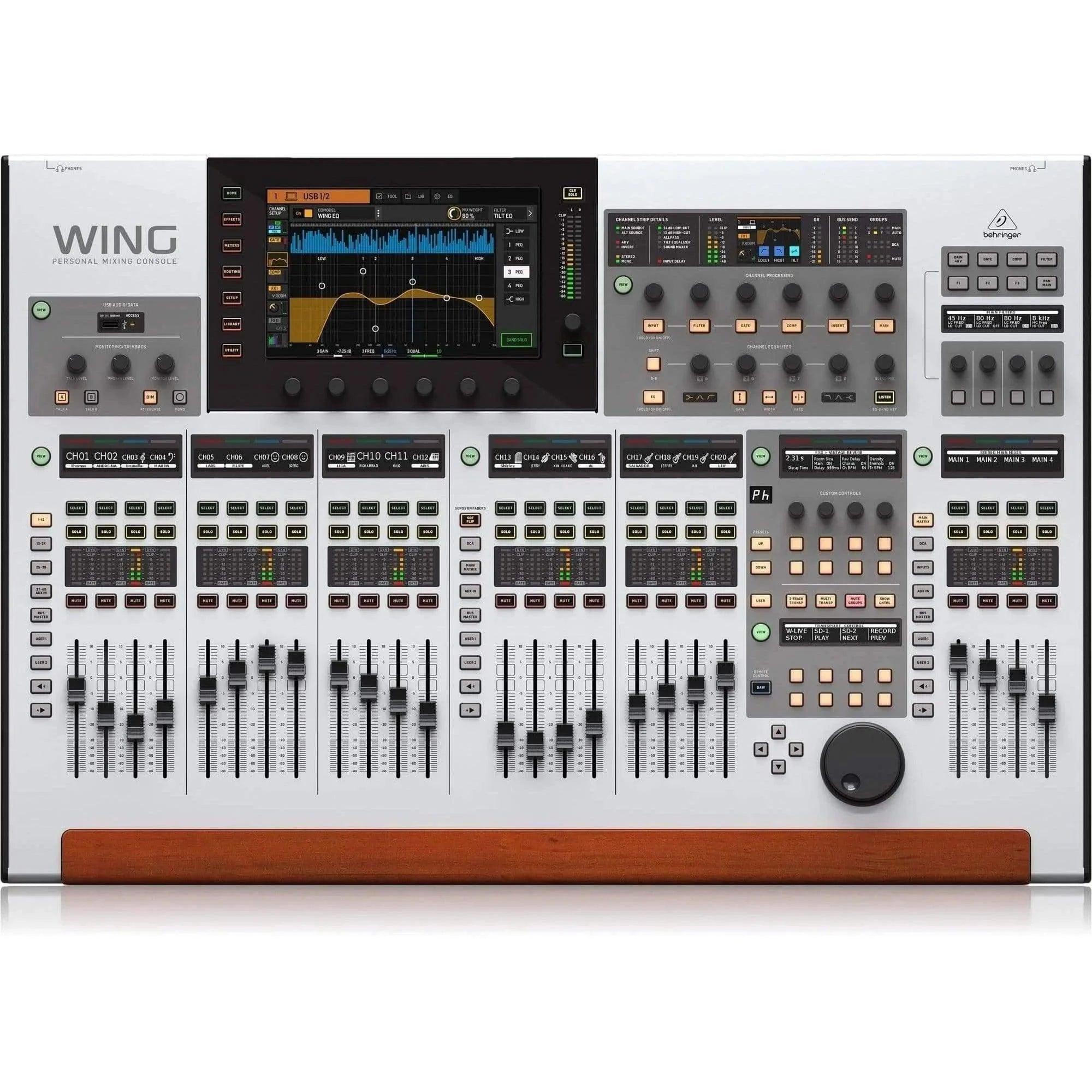

Behringer WING 48-Channel Digital Mixer
Behringer WING 48-Channel Digital Mixer
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Are you looking for a digital mixer that’s both feature-packed and easy to use? Look no further than the Behringer WING 48-Channel Digital Mixer! This 48-stereo-channel digital mixer offers 40 stereo input processing channels, as well as 8 stereo aux channels, 28 stereo buses, and 24 smooth-feeling motorized 100mm faders in 3 separate, configurable sections. You’ll be able to capture high-quality sound with 8 MIDAS Pro mic preamps and MIDAS outputs, as well as 3 AES50 ports for plug-and-play remote I/O connectivity for up to 144 input and output signals. Plus, this digital mixer includes a 32-channel StageCONNECT interface for personal monitoring or analog I/O boxes and a WING-LIVE card for capturing up to 64 channels of 32-bit/48kHz audio.
FEATURES:
- 48-stereo-channel digital mixer with 40 stereo input processing channels, as well as 8 stereo aux channels
- 28 stereo buses — 16 stereo aux buses, 8 stereo matrixes, and 4 stereo mains
- 24 smooth-feeling motorized 100mm faders in 3 separate, configurable sections
- 10.1” capacitive touchscreen, adjustable display wheel, and rotary controls provide touch-sensitive channel editing
- 8 MIDAS Pro mic preamps and MIDAS outputs ensure that you capture high-quality sound
- 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
- AES50 networks are compatible with MIDAS M32 and Behringer X32 mixers
- 32-channel StageCONNECT interface for personal monitoring or analog I/O boxes
- Includes AES/EBU stereo digital I/O, 2 headphone connectors, MIDI I/O, and 4 GPIO ports
- Compatible with Behringer and MIDAS digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
- WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
- Optional expansion cards supply Dante, SoundGrid, or MADI support
- Built-in 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality
- Sources put the emphasis on your source audio rather than on your inputs and channels
- Apply names, icons, and colors to each Source for at-a-glance identification
- Each channel can be either mono, stereo, or mid-side — no channel linking required
- 16 true-stereo processors with effects from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, Elysia, and Empirical Labs
- AutoPilot supplies fast and dependable automixing with 2 groups of gain sharing
- Dual solo/monitor buses per channel for monitoring over phones/IEM and/or floor wedges
- Support for binary and OSC communication for remote operation
- WING Co-Pilot tablet app enables you to label or set parameters while patching from the stage
SPECIFICATIONS
| Type: | Digital Mixer |
| Channels: | 48 Stereo (40 x channel, 8 x aux) |
| Inputs - Mic Preamps: | 8 x XLR-1/4" combo (mic/line) |
| Phantom Power: | Yes |
| Outputs - Main: | 8 x XLR |
| Inputs - Digital: |
1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
|
| Outputs - Digital: |
1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
|
| Send/Return I/O: | 8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out) |
| Busses/Groups: |
8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
|
| Inserts: | Dual Inserts per Bus, FX Insert Slot |
| MIDI I/O: | In/Out |
| Data I/O: | 2 x Ethernet (control/audio network) |
| Remote: | 1 x 1/4" (GPIO 1-2), 1 x 1/4" (GPIO 3-4) |
| USB: | 1 x Type B, 1 x Type A |
| Computer Connectivity: | USB 2.0, 24-bit/48kHz (48 x 48) |
| I/O Expansion Slots: | 1 x Expansion Port (24-bit/48kHz) |
| Headphones: | 2 x 1/4" |
| Faders: | 24 x 100mm Motorized |
| A/D Resolution: | Up to 24-bit/192kHz |
| EQ Bands: |
6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
|
| Effects: |
8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
|
| Signal Processing: | Full Dynamics Processing |
| DAW Control: | Yes (HUI, Mackie) |
| Screen: | 10" Capacitive Touchscreen, Adjustable Swivel |
| Storage: | 2 x SD Card Slot (dual 32 track max) |
| Power Source: | Standard IEC AC cable |
| Height: | 7.9" |
| Depth: | 22.6" |
| Width: | 34.3" |
| Weight: | 52.8 lbs. |
| Manufacturer Part Number: | Wing |
HOW IT WORKS:
The Behringer WING consists of 48-stereo-channel digital mixer, 8 MIDAS Pro mic preamps and MIDAS outputs, 3 AES50 ports, 32-channel StageCONNECT interface, and a WING-LIVE card. The mixer allows you to configure three separate sections, each with 24 smooth-feeling motorized 100mm faders. The 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals. The WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards. The 32-channel StageCONNECT interface provides personal monitoring or analog I/O boxes.FAQ:
Q: Does the Behringer WING support Dante, SoundGrid, or MADI?
A: Yes, optional expansion cards supply Dante, SoundGrid, or MADI support.
Q: Does the Behringer WING include a USB audio interface?
A: Yes, it includes a 48-in/48-out USB audio interface with HUI and Mackie Control DAW remote functionality.
