Turbosound TCS110B-10" Band Pass Subwoofer for Installation Applications (White)
Turbosound TCS110B-10" Band Pass Subwoofer for Installation Applications (White)
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
-
Band pass subwoofer for installation applications
-
300 Watts continuous, 1,200 Watts peak power
-
HIgh excursion 10" low frequency driver with inside/outside wound coil
-
Low distortion dual port design for maximum sound pressure level
-
15 mm (5/8?) birch plywood enclosure with hard wearing semi matt white paint finish
-
Integral M10 rigging points for ease of installation
-
Neutrik speakON* NL4 and barrier strip connectors
DESCRIPTION
The 1,200-Watt TCS110B-WH is a high performance 10" subwoofer system designed for a wide range of speech and music sound reinforcement applications. Engineered to work in conjunction with Turbosound loudspeaker management systems, the TCS110B-WH provides extended low frequency performance from a compact enclosure.
A dual port design enclosure, the TCS110B-WH features an extremely powerful, high excursion 10" low frequency driver with a specialised voice coil wound on both the inside and outside of the coil former for higher magnetic density, heat dissipation, higher power handling capacity, and improved efficiency. The TCS110B-WH provides fast and accurate transient response for virtually distortion-free operation – even in your most demanding performances.

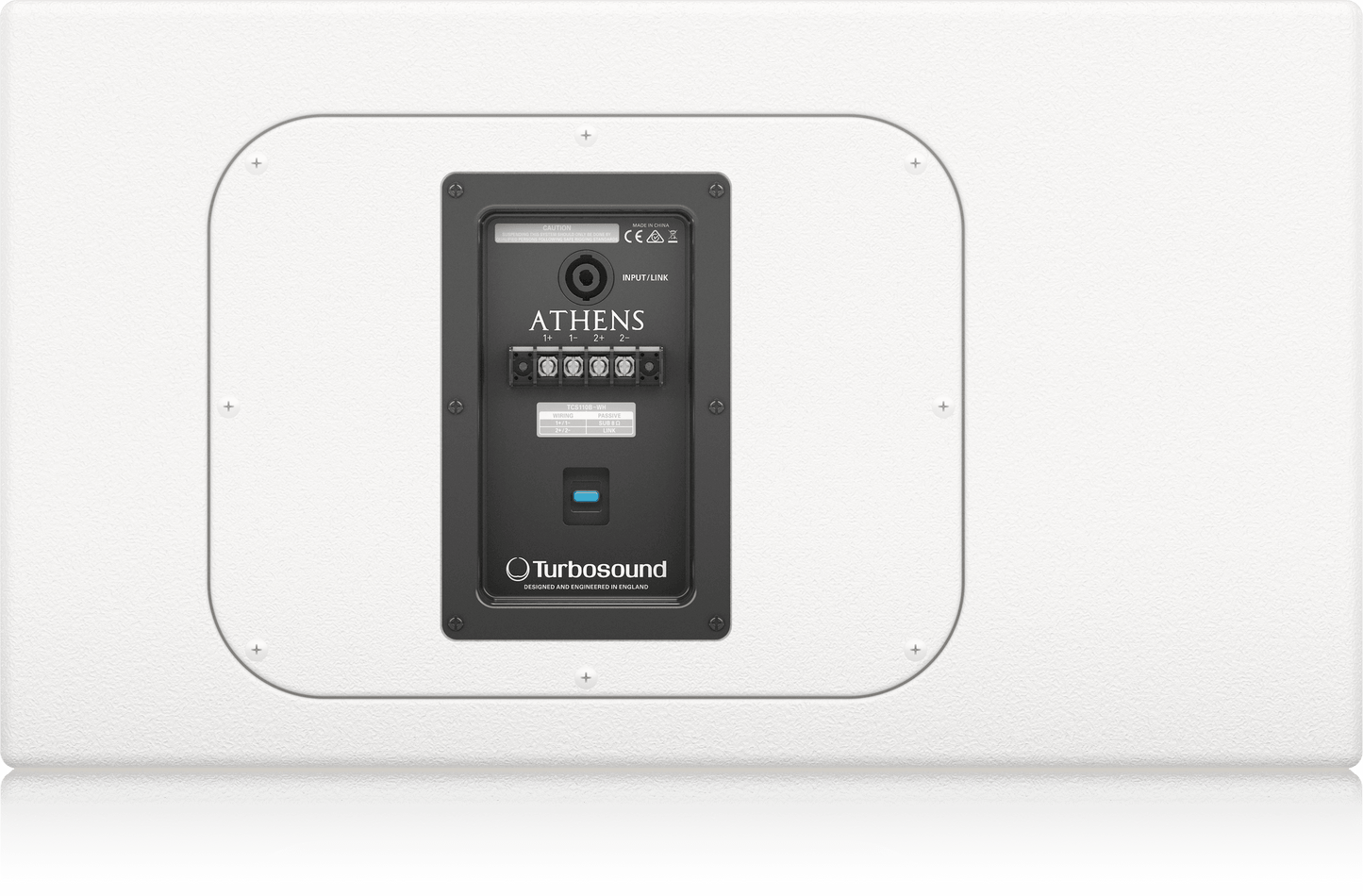

Finished in a highly durable semi matt white paint, the cabinet is constructed from 15 mm (5⁄8") birch plywood with integral M10 threaded rigging points. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.
Architecture & Engineering Specifications
The speaker shall be of the passive subwoofer type consisting of one 10" (262 mm) LF driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 50 Hz to 150 Hz and within -10 dB from 40 Hz to 200 Hz. Nominal dispersion shall be “half space.” Nominal impedance shall be 8 Ohms. Power handling shall be 300 Watts continuous, 1,200 Watts peak. Sensitivity, measured on axis, mean averaged over stated bandwidth, shall be 94 dB, 1 Watt @ 1 metre. Maximum SPL (peak), measured at 1 metre with music program at stated amplifier input, shall be 125 dB. Dimensions: 330 mm high x 585 mm wide x 330 mm deep (13.0" x 23.0" x 13.0"). Net weight: 15.8 kg (34.8 lbs). The loudspeaker system shall be the Turbosound TCS110B-WH . No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equaled or exceeded.
SPECIFICATIONS
Frequency Response |
50 Hz - 150 Hz ±3 dB 40 Hz - 200 Hz -10 dB |
Nominal Dispersion | Half space |
Power Handling (IEC) | 300 W continuous, 1200 W peak |
Sensitivity | 94 dB (1 W @ 1 m) |
Impedance | 8 O |
Connectors |
1 x Neutrik speakON* NL4, 1 x barrier strip terminals |
Dimensions (HWD) | 330 x 585 x330 mm (13.0 x 23.0 x 13.0") |
Net Weight | 15.8 kg (34.8 lbs) |
Construction | 15 mm (5/8") birch plywood |
Finish | Semi matt white paint |
Grille | Powder-coated perforated steel |
Flying Hardware | M10 x 8 |
