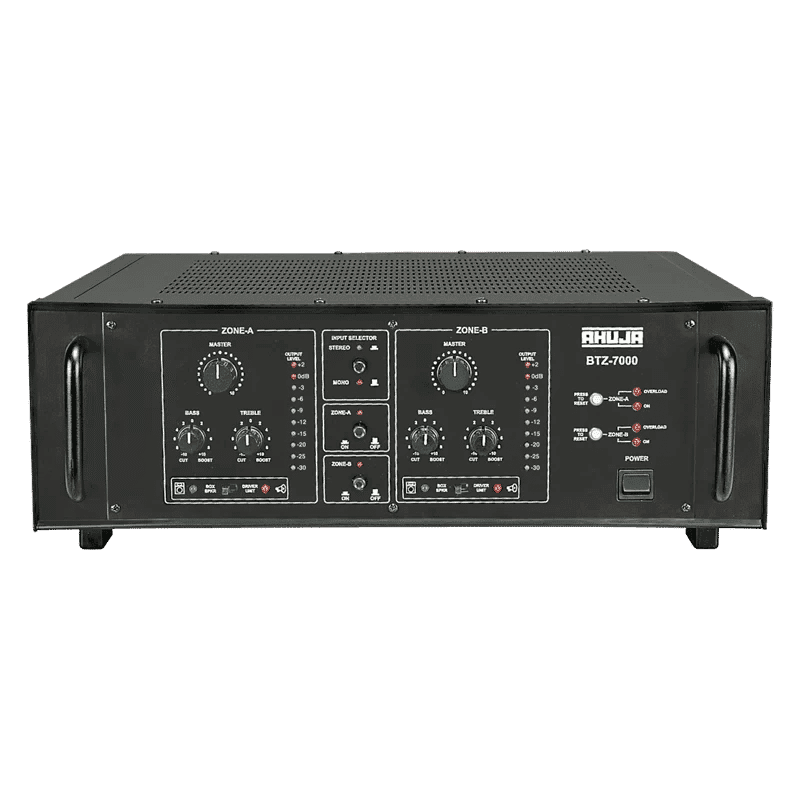

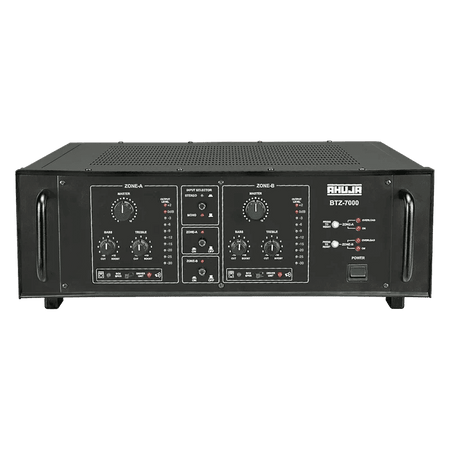

Ahuja BTZ7000 PA Amplifier
Ahuja BTZ7000 PA Amplifier
Couldn't load pickup availability
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
KEY FEATURES
- Stereo Music Operation for DJ programs.
- Facilitates connection and operation of two separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for places of worship.
- Box Speaker/Driver Unit selector switch for each zone. Bass Boost defeated at
- Driver Unit position for safer operation of driver units.
- Resettable circuit breaker for protection against overload and short circuits.
- Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Bar Graph Signal Display.
SPECIFICATIONS
|
Power Output |
500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300W RMS at 5% THD, 280W + 280W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
Mono 2 × 200mV/100kΩ, Stereo L/R 200mV/100kΩ, Line L/R 1V/50kΩ |
|
Frequency Response |
50-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
|
Outputs |
Line L/R 1V/1kΩ |
|
Speaker Outputs |
4Ω, 8Ω, 70V& 100V for each zone |
|
Power Supply |
AC: 220-240V 50/60 Hz DC: 36V (3×12V Car Battery) |
|
Power Consumption |
AC: 1100VA DC: 13A |
|
Dimensions |
W510 × H185 × D470 mm |
|
Weight |
39.0kg |
