Wharfedale Pro

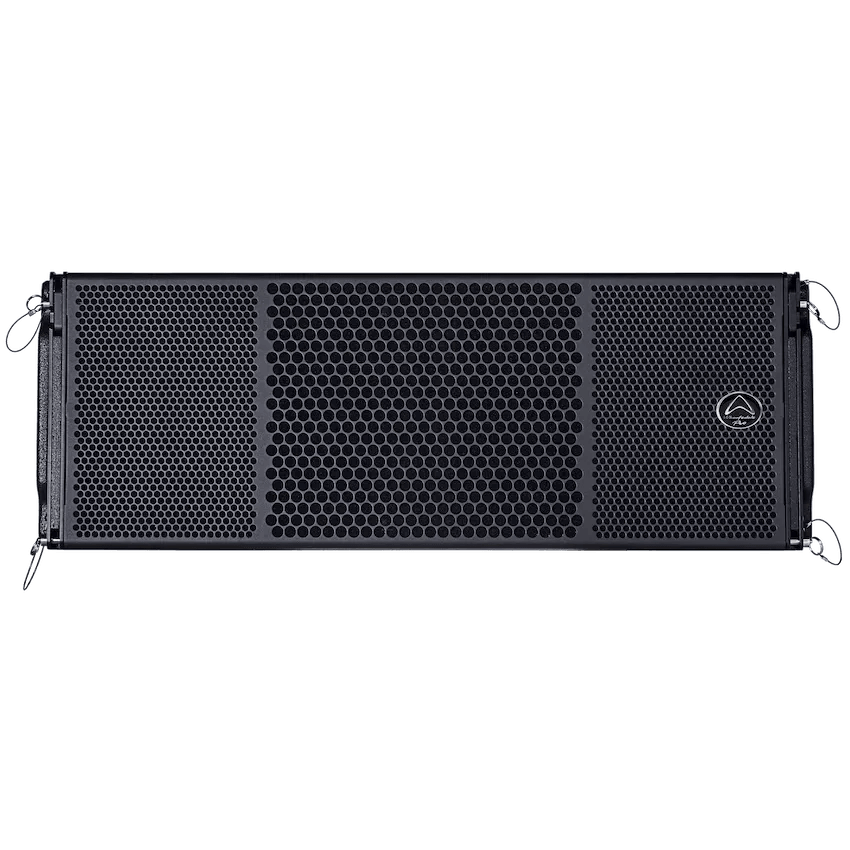

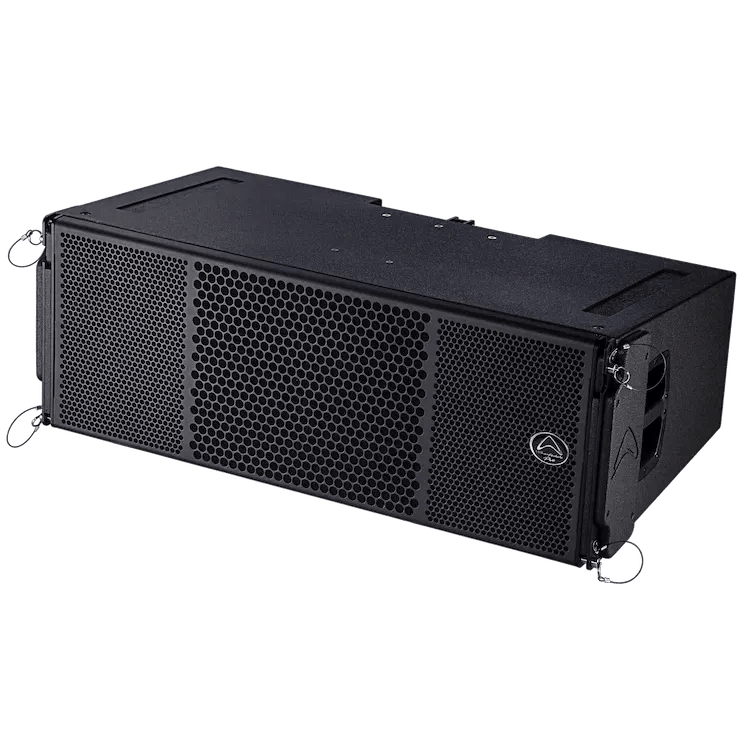

Wharfedale Pro WLA312X Line Array Speaker Passive 3-Way 2x12" 1410W RMS, 16Ω impedance

Wharfedale Pro WLA312X Line Array Speaker Passive 3-Way 2x12" 1410W RMS, 16Ω impedance

Regular price Dhs.5,880.00 AED
Regular price Sale price Dhs.5,880.00 AED
Sale Sold out

For Wholesale Enquiries Please Contact Us On WhatsApp

This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co

Download Product Data Sheet

KEY FEATURES

  • Three-way line array element
  • 2 x 12” LF drivers
  • 1 x 10” Neo Midrange driver
  • 2 x 2.55” Neo HF compression drivers
  • Birch plywood construction
  • 1410 watts AES (RMS)
  • 2820 watts Programme
  • 5640 watts Peak
  • 16 ohms impedance

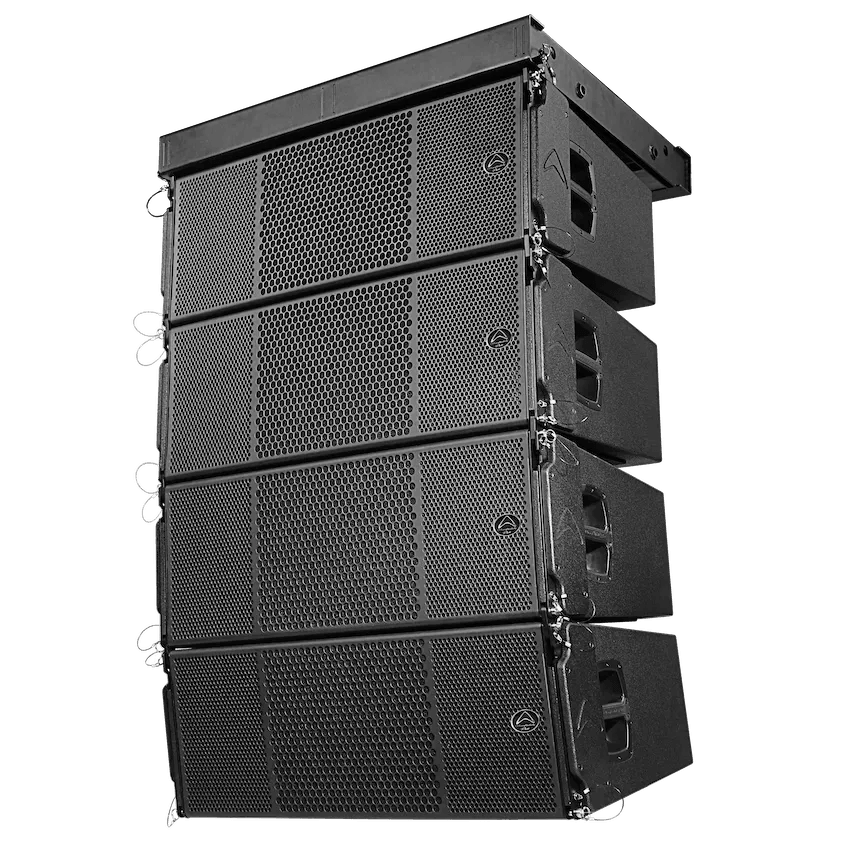

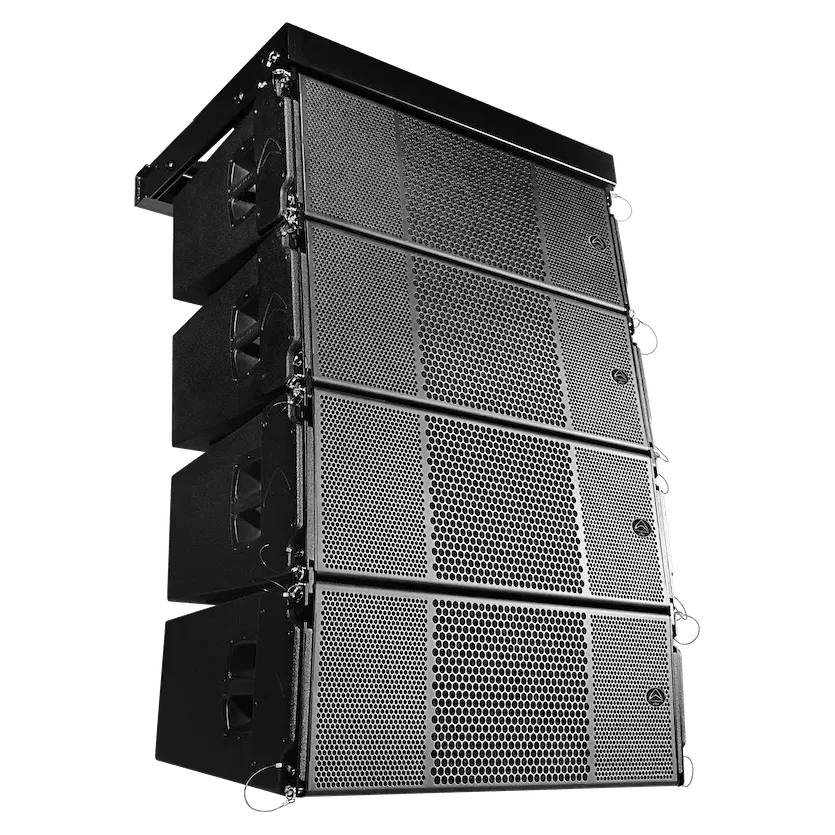

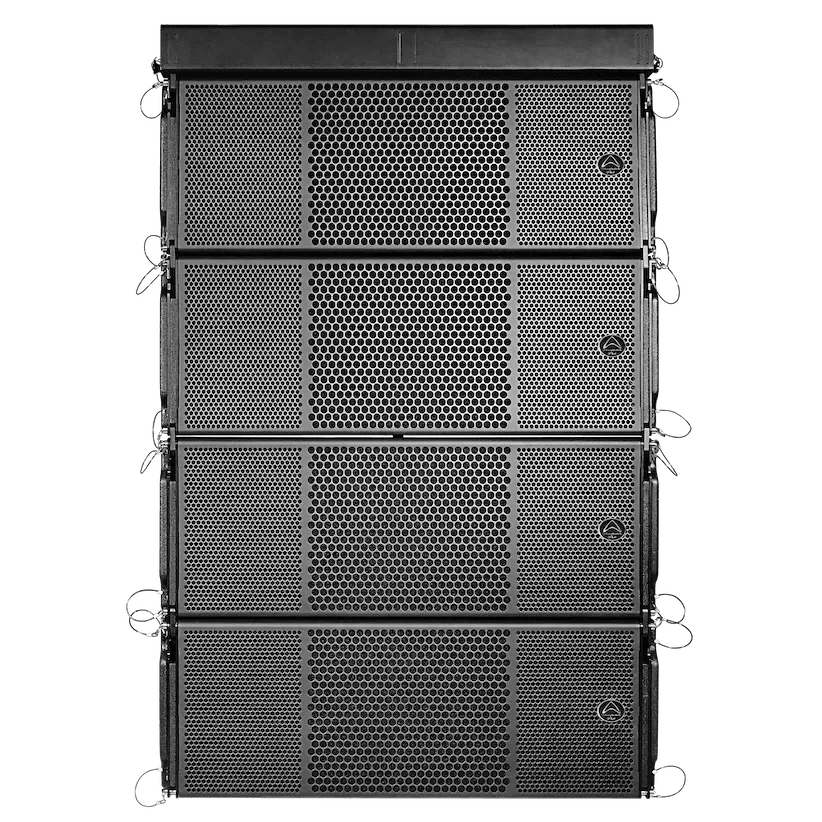

  • Fly frame to support up to 12 elements (900 kg)



DESCRIPTION

WLA-312X is an advanced three-way line array speaker system capable of handling vast amounts of power – while remaining sonically clear, precise and accurate. Rated at 1410 W AES (RMS) per cabinet and boasting highly efficient custom Wharfedale Pro drivers, the WLA-312X can deliver an astonishing 138 dB Max SPL @ 1 meter.

Custom WP drivers have been selected to ensure that this series not only has the power you would expect, but the three-way configuration brings a new sonic dimension and definition.

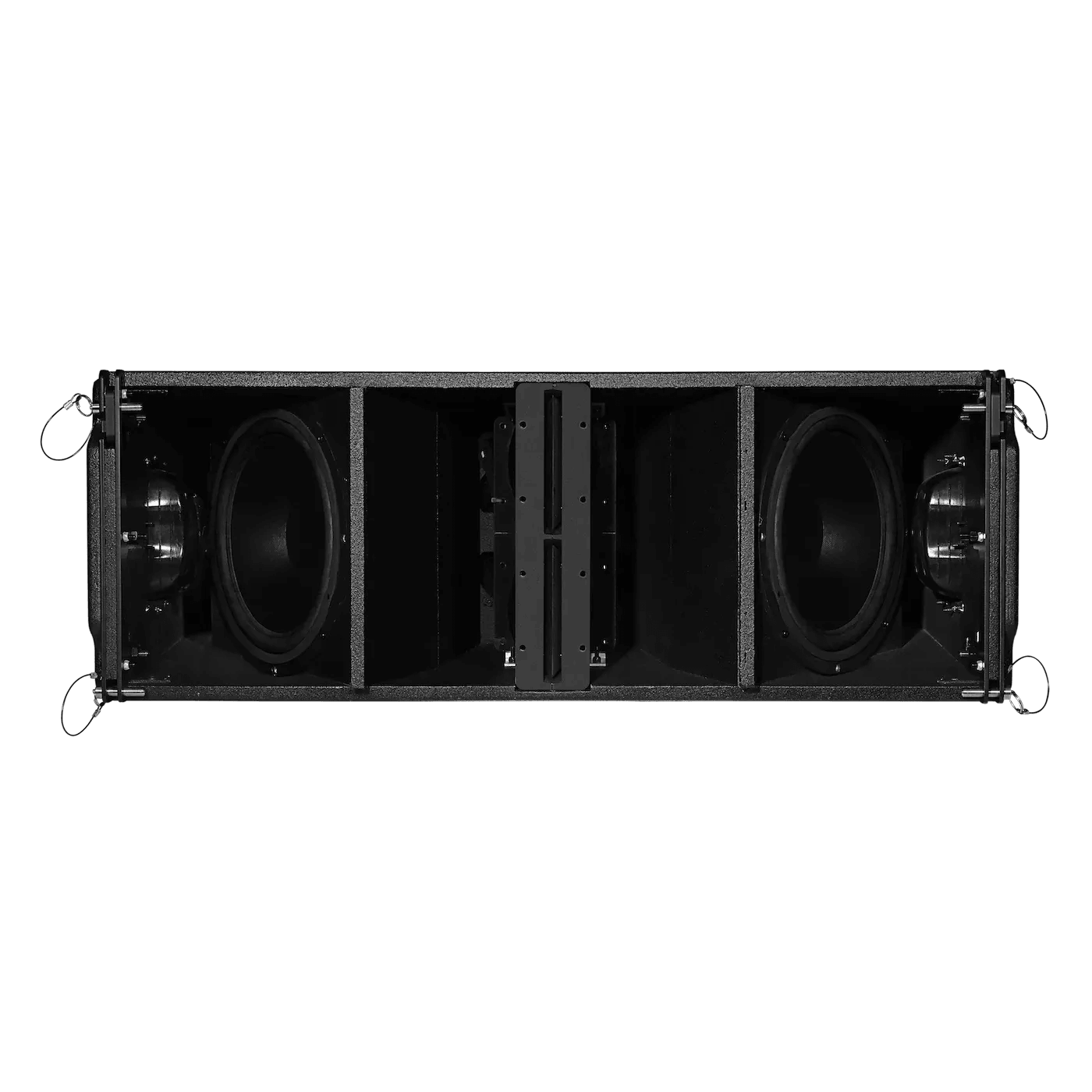

With dual 12” woofers, a single 10” midrange driver and dual 2.55” compression drivers, the WLA-312X has everything needed for large venue coverage. In addition, there is no need to fly subwoofers within the array – the WLA-312X has already got plenty of low-end punch.

The WLA-312X is designed to be controlled and tuned with either a Wharfedale Pro Versadrive signal processor or a DP-D series amplifier. Either of these DSP systems deliver full signal routing and processing to maximise the power and sonic effect of the WLA-312X array.

SPECIFICATIONS

Specification Value
System Type Passive
Configuration Three-way
Frequency Response (+/-3 dB) 50-18 KHz
Frequency Range (-10 dB) 40-20 KHz

Low Frequency Transducer

Sensitivity (2.83V / 1 Meter) HF: 114 dB / MF: 105 dB / LF: 102 dB
Calculated Maximum SPL @ 1 Meter HF: 142 dB / MF: 136 dB / LF: 138 dB
Size (mm / inches) 313 mm / 12”
Voice Coil Size (mm / inches) 75.5 mm / 3”
LF Magnet Material Ferrite
LF Frame Material Aluminium
Rated Impedance 2 x 8 Ω
LF Power (AES2-2012) 2 x 450 W

Mid Frequency Transducer

Size (mm / inches) 260 mm / 10”
Voice Coil Size (mm / inches) 65 mm / 2.55”
MF Magnet Material NdFeB
MF Frame Material Aluminium
Rated Impedance 16 Ω
MF Power (AES2-2012) 350 W

High Frequency Transducer

HF Driver Type Compression Driver
Coil Size (mm / inches) 65 mm / 2.55”
Exit Size (mm / inches) 1.4″
HF Magnet Material NdFeB
Diaphragm Material Titanium
Rated Impedance 16 Ω (2 x 8 Ω)
HF Power (AES2-2012) 160 W (2 x 80 W)
Waveguide Type Square
Nominal Coverage (H x V) 90H x 7.5V
Nominal Impedance 16 Ω

Power Ratings

System Power AES (RMS) HF: 160 W / MF: 350 W / LF: 900 W
System Programme Power HF: 320 W / MF: 700 W / LF: 1800 W
System Peak Power HF: 640 W / MF: 1400 W / LF: 3600 W
Crossover Frequency 160 Hz / 1.2 KHz

Connections & Rigging

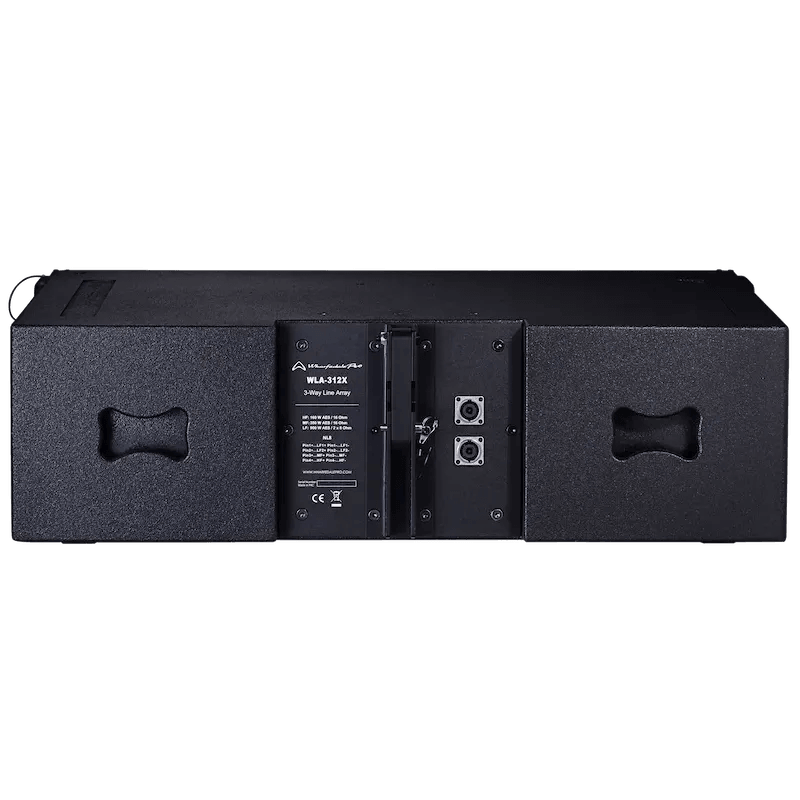

Input Connector 2 x Neutrik NL8MPR
Rigging 3 points for rigging
Pole Mount No
Handles Yes

Enclosure

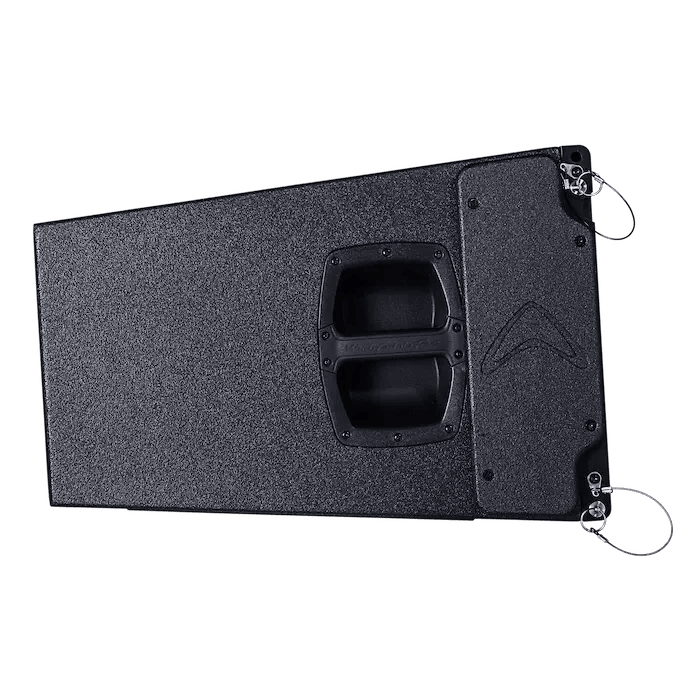

Cabinet Type Trapezoid
Enclosure Material & Finish 15 mm, 18 mm plywood
Colour Options Black paint
Grille Material & Finish Steel
