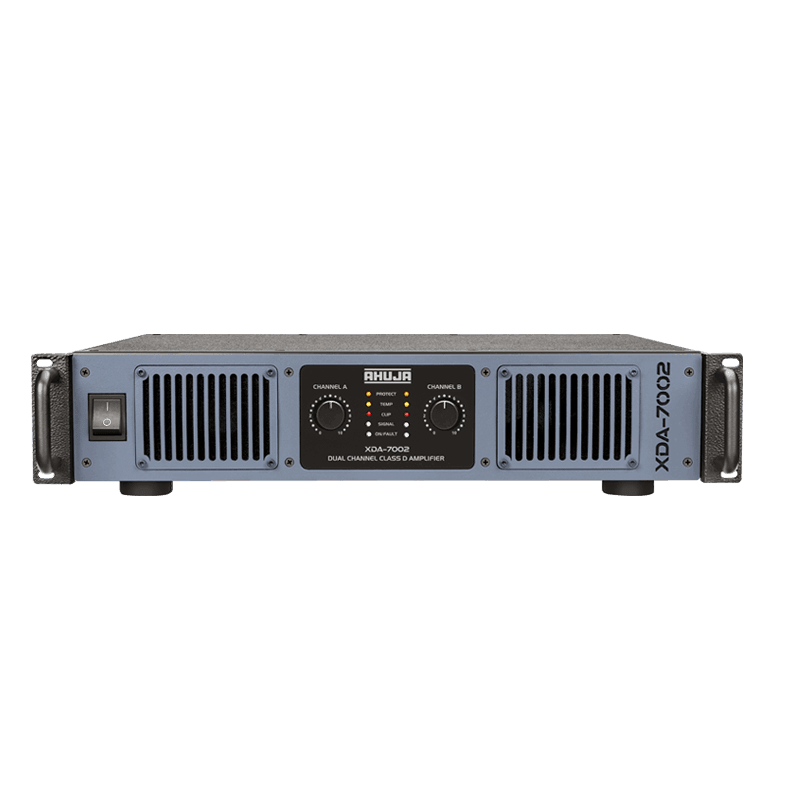

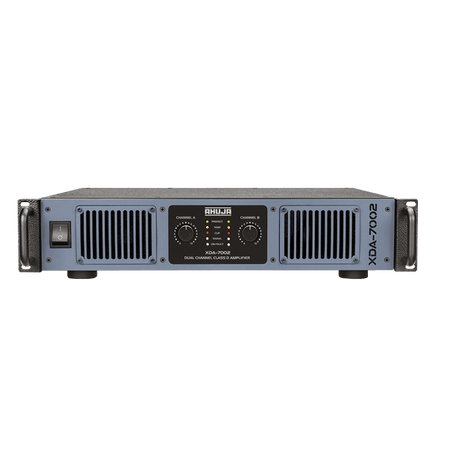

Ahuja XDA-7002 2400+2400 Watts Dual Channel Class D Power Amplifier
Ahuja XDA-7002 2400+2400 Watts Dual Channel Class D Power Amplifier
Couldn't load pickup availability
For Wholesale Enquiries Please Contact Us On WhatsApp
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
KEY FEATURES
- Dual Channel Class D Power Amplifier.
- 2400 + 2400 Watts rated output.
- 80Hz/120Hz Low Pass Filter.
- Built-in Limiter ON/OFF circuit.
- Toroidal Transformer power supply.
- Two selectable input sensitivities.
- Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Over voltage & Clip Monitoring.
- Compact 2U Size.
- BIS approved.
SPECIFICATIONS
|
Continuous Rated Power Stereo/Mono |
8Ω : 1350W + 1350W RMS, 4Ω : 2400W + 2400W RMS |
|
THD + N |
< 0.1% |
|
Frequency Response (-1dB) |
20-20,000Hz |
|
Low Pass Filter |
80/120Hz @ 24dB per octave |
|
Power Bandwidth (0.5% THD) |
20-20,000Hz |
|
Input Sensitivity |
0dBu (775mV) & 4dBu (1.23V) (Selectable) |
|
Input Impedance |
10k Unbalanced, 20k Balanced |
|
Signal To Noise Ratio |
> 100dB |
|
Channel Separation |
> 65dB at 1kHz |
|
Damping Factor (8W ) |
>1000 |
|
Slew Rate |
20V/µs |
|
Protections |
Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF); AC: Circuit Protector 16A; ± DC: Fuse 2×16A (T 16A L) |
|
Input Connectors |
2×XLR, Stereo Phone Jack 6.3mm |
|
Output Connectors |
Speakon 4-Way and heavy duty Binding Post for each channel |
|
Cooling |
2 × Variable Speed DC Fan with Temperature Sensing |
|
Front Panel Controls |
2×41 Step Level Attenuators |
|
Indicators |
Power ON/FAULT, Signal, Clip, Temperature, Protect (Ch. A & B) |
|
Power Consumption (Rated) |
5500VA @ 220-240V ~ 50/60Hz |
|
Dimensions |
W482 × H104 × D438mm |
|
Weight |
22.10kg |
